Introduction

A step-by-step guide for motion detector replacement on a Ring Spotlight Battery-Powered Cam .

  1. aXNxJGXYqiIW6Onm
    • Turn Ring Spotlight Cam to the posterior side and flip upside down

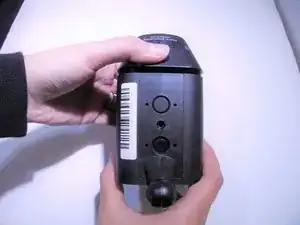

  2. 163hGVRoomBKTfGq
    • Press down on top button and open upward

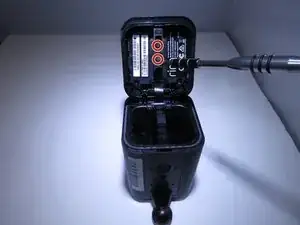

  3. rfArcS6ugFRI6jhR
    • Make sure to remove the batteries in the Spotlight cam before proceeding with this step!

    • Open the Spotlight Cam upward and remove the two screws with a Phillips #1 screwdriver.

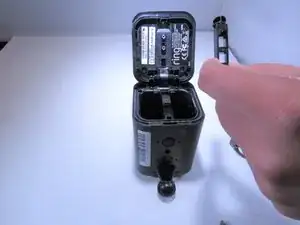

  4. nEwAkSoEhnFv5Obd
    • Remove the two screws down the middle and lift the middle component off

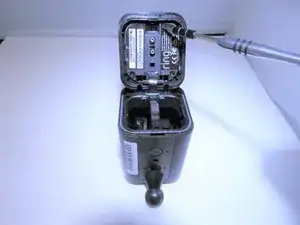

  5. 2vAyTVWH6XS5YB2M
    • Remove the remaining 10 screws that are around the border under the tape.

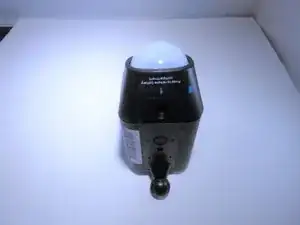

  6. 1w1XTxyBFULNEW6g
    • Gently close the top of the lid

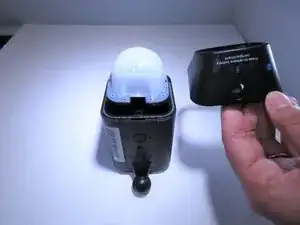

  7. e1VDouay1cDBjITM
    • Remove the top lid and replace the LED light

Conclusion

To reassemble your device, follow these instructions in reverse order.
