Ring Stick Up Cam Camera Replacement

Written By: Ao Li
  • Comments: 5
Ring Stick Up Cam Camera Replacement

Difficulty

Moderate

Steps

13

Time Required

20 - 40 minutes

Introduction

In this guide, we will show you how to replace the camera in a Ring Stick Up Cam. You will need a Phillips #00 screwdriver and a plastic opening tool.

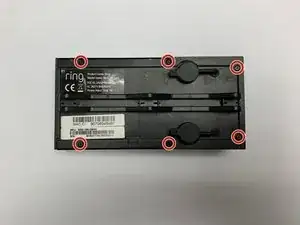

  1. rRPZqRWiMrlUlioC

    • Remove the six 6mm Phillips #00 screws from the back of the device.

  2. P1W33rQQqwMmdKee

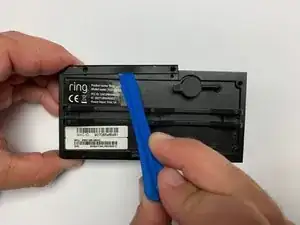

    • Pry off the aluminum plate using a plastic opening tool.

  3. aVQdIJEIl2iyaGRL

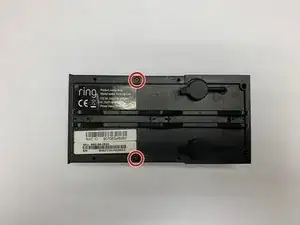

    • Remove the two 6mm Phillips #00 screws that were under the aluminum plate.

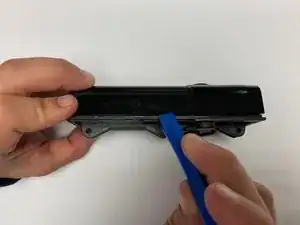

  4. hPc1kEcMdZJORgWY

    • Pry off the back cover using a plastic opening tool.

  5. MKPyqxKyJEoDToNY

    • Disconnect the battery power leads using a plastic opening tool.

  6. MnCcwXCSdIgQHQuF

    • Use a plastic opening tool to loosen the adhesive holding the battery in place and remove the battery by hand.

    Where do we buy a new battery from?

    lessonsinflight -

    Battery specs would be great in this tear down so one can know what battery to get and have everything they need for the repair.

    Edward Clark -

    I have these available if you would like one. The specs are 3.75 volt, 5000 mAh nominal. The ones I sell are OEM, used pulls from overstock or upgraded units.

    Solarescycle -

  7. 2LPgRQTZJwOPTuNK

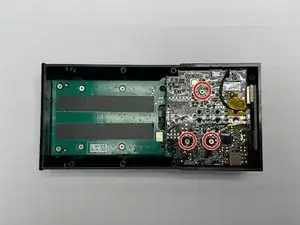

    • Remove the three silver 6mm Phillips #00 screws holding the motherboard in the device.

  8. ErpB51CsaQThkeoV

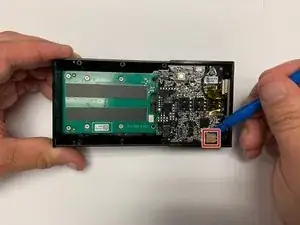

    • Disconnect the ribbon connector shown in the photo.

  9. byxTFlvecRwDpAZR

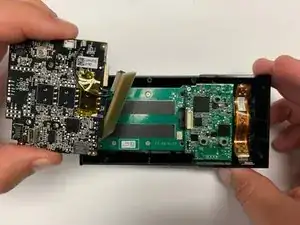

    • Remove the motherboard from the device by hand.

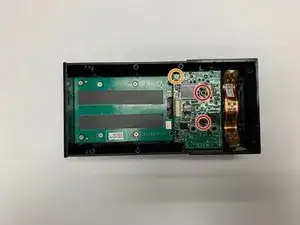

  10. jCt4W4JhHLWkxKEi

    • Remove the two black 5mm Phillips #00 screws holding the camera board into the device.

    • Remove the single silver 10mm Phillips #00 screw holding the camera board into the device.

  11. vDosCorkxdhvTxhm

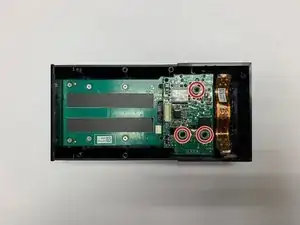

    • Remove the three plastic spacers shown in the photo by hand.

  12. 35mVajPaUaYtIpWt

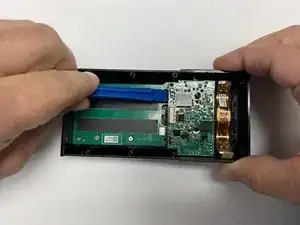

    • Carefully disconnect the camera board from the daughterboard by sliding a plastic opening tool between the camera board and the daughterboard.

  13. So2dIBCsISOn4rCy

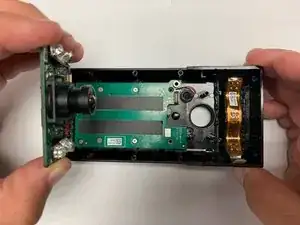

    • Lift the camera board out of the housing using your hand.

Conclusion

To reassemble your device, follow these instructions in reverse order.
