Rocketfish RF-WSP313 Speaker Replacement

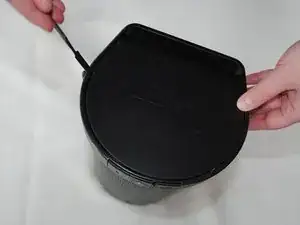

Using the metal spudger, remove the outer cap from the top of the device.

Using a Phillips # 1 screwdriver, remove the four 1.1 cm flathead screws attaching the metal ring to the top of the device.

Remove the ring and set aside.

Using the metal spudger, remove the cap from the bottom of the device.

Using a Phillips # 1 screwdriver, remove the four 1.1 sm screws attaching the metal ring to the bottom of the device.

Remove the ring and set aside.

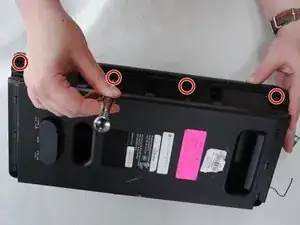

Using a Phillips # 1 screwdriver, remove the four 1 cm screws from the outside panel. You will do this for each panel; it does not matter which side you start with.

Using the metal spudger, pry off the side panel. Repeat this step on the other side panel.

Using a Phillips #1 screwdriver, remove the four 1.1 cm flathead screws from the side of the device. Repeat this step on the other side of the device.

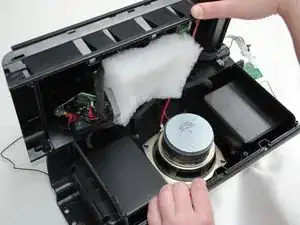

Using the metal spudger, open the device.

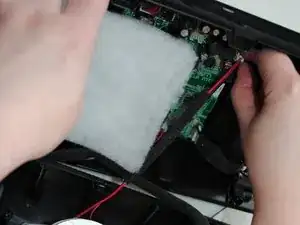

Using your fingers (or a pair of tweezers), disconnect the speaker cord from its socket.

Using a Phillips #1 screwdriver, remove the four 1.2 cm pan head screws surrounding the speaker.

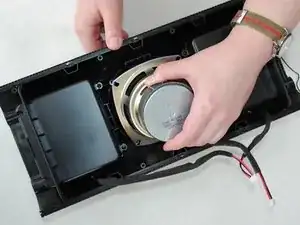

Remove the speaker from the device.
