Rotor Riot Face Button Replacement

Written By: Adriana Zwink
  • Comments: 0
Rotor Riot Face Button Replacement

Difficulty

Moderate

Steps

9

Time Required

20 - 30 minutes

Introduction

Use this guide to replace the face buttons on your Rotor Riot controller.

  1. FxLCVbZib54VQWKy
    FxLCVbZib54VQWKy
    1sFSyKMOJbPKKROp
    VEDWjCh3FUuufMGh

    • Use your fingers to remove the screw on the back side of the controller securing the iPhone mount.

    • Remove the iPhone mount.

  2. PVXhvYfdsaFXIROD

    • Use a T6 Torx screwdriver to remove the eight 9.2 mm-long screws securing the back cover.

    • Don't try to remove the back cover all the way yet! It's still connected to the mainboard.

  3. xdUAIoqYi6B4Vcbh
    xdUAIoqYi6B4Vcbh
    QpEAThsCEAYLEMTx
    XQwDRLRGoRQrIV1H

    • Lift up the back cover of the controller.

    • Lift the back cover to a 45 degree angle and place it next to the controller.

    • Don't strain the interconnect cable during this procedure.

  4. XIR3TWivXMtfwZyi
    XIR3TWivXMtfwZyi
    cELXgbA3mvWoxqyM
    YPTYmwrhxHBeI4FW

    • Use a spudger to disconnect the phone connector cable from the mainboard.

  5. RiOomcj5houAUciq

    • Remove the back cover.

  6. gLt13No5VXWsOWkP
    gLt13No5VXWsOWkP
    QlL4rVZVkS3b3twU

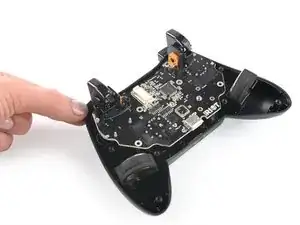

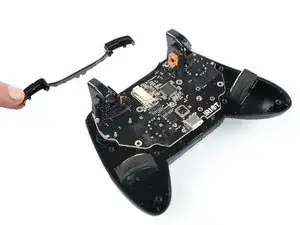

    • Remove the shoulder buttons by lifting them out of the case.

  7. T6MTNvTgcRE6arDG

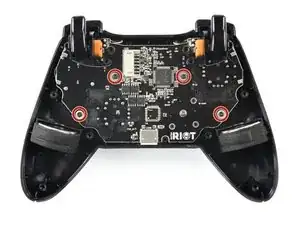

    • Use a Phillips screwdriver to remove the four 7.0 mm-long screws securing the mainboard.

  8. rsmvNybTjGtyefJ1
    rsmvNybTjGtyefJ1
    SgmmkJZQlafLjGYU
    QbHRoJpmkwQrSg4X

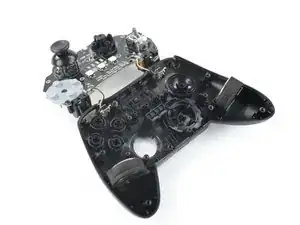

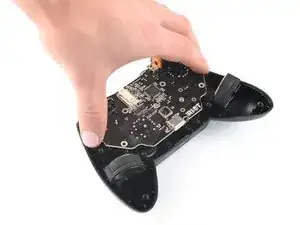

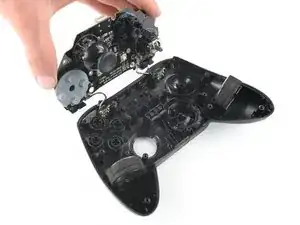

    • Flip over the mainboard and place it above the controller housing.

    • Avoid tensioning the trigger button cables during this procedure and don't try to remove the mainboard all the way yet! It is still connected to the controller housing.

  9. wCEW4pyStSqiYPsy
    wCEW4pyStSqiYPsy
    YCjM1ZObiIN1KFnB

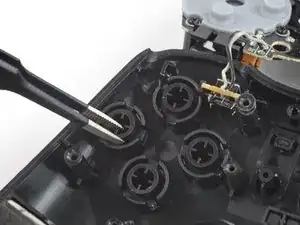

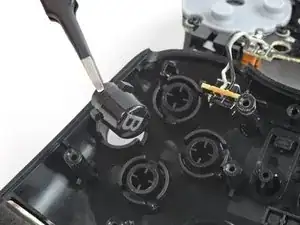

    • Use a pair of tweezers to remove the face buttons from the housing.

    • The alignment pegs on each button are designed to prevent incorrect installation. Make sure your new buttons fit properly in the controller case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
