SILVERCREST Monsieur Cuisine Connect SKMC 1200 Leakage Repair/Wave Washer Replacement

Written By: Sebastian Kleinschmidt
  • Comments: 1
SILVERCREST Monsieur Cuisine Connect SKMC 1200 Leakage Repair/Wave Washer Replacement

Difficulty

Easy

Steps

4

Time Required

15 minutes

Introduction

  1. KYd1UHTKDpYI6OCD
    KYd1UHTKDpYI6OCD
    qwbyvFXWCwiWwvVJ

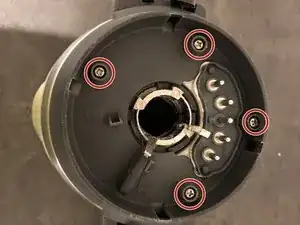

    • Remove all four Phillips screws to remove the bottom of the housing.

  2. H2qb1gViNN5DQjnB
    H2qb1gViNN5DQjnB
    LYNLZwwivV3CG215

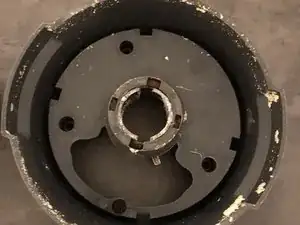

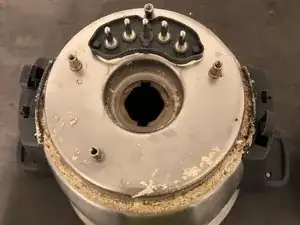

    • Clean the housing from food residues that have entered the housing through the leakage.

  3. hANPhnNhYPwTMWes

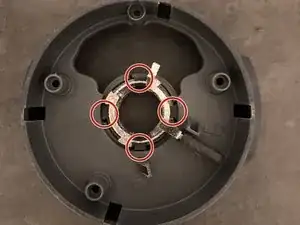

    • Remove the latch by using a flathead screwdriver to carefully bend the plastic retainers to the side while gently lifting the latch out.

  4. 3q4a5lF4RWJLdYvQ

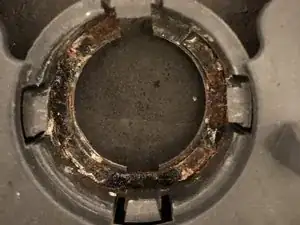

    • Remove the remains of the old wave washer and remove all corrosion residues before inserting the new M34 x 41 x 0.5mm wave washer.

    • Then snap the latch back into place and screw the unit back on.

Author

Sebastian Kleinschmidt

Member since: 07/11/22

139 Reputation

One comment

I bought the wave washer via ebay (10 pieces) and replaced it as described here. Only residues from the old one were remaining...

Now the closing mechanism of the blade feels firm again and (so far) no leakage was observed.

Thanks!

Marc Hippler -
