How to replace the back casing to SVP Aqua 5800

  1. VhVjXRrRZScpjM1K
    VhVjXRrRZScpjM1K
    aKTLLqHRqd5KXA6v
    OvHhCVFcZNsKdJBo

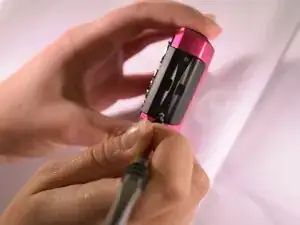

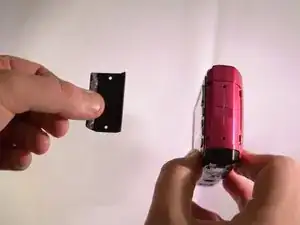

    • Locate the two 3.5 mm screws on the side of the device.

    • Apply pressure to the PH J000 philips head screwdriver and turn in a counter clockwise motion until the screw becomes loose enough to pull out.

  2. 4QIsvPvKGgFiRiTH
    4QIsvPvKGgFiRiTH
    OcXUBcriXmDcHHdk

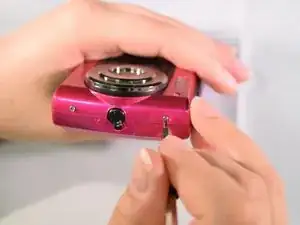

    • Once you have properly removed the strap hook, locate the two 3 mm screws located on the opposite side of the strap hook.

    • Refer to the prerequisite guide on removing the strap hook for instructions.

    • Place the PH J000 phillips head screwdriver on the head of screw; apply pressure and turn in a counter clockwise motion until screws come loose.

  3. XT1bEY5klgXSuYMj
    XT1bEY5klgXSuYMj
    DpWqWmsnWgLv2DXX

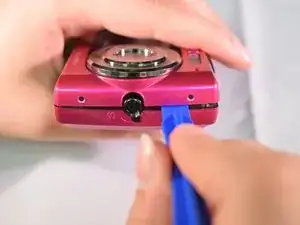

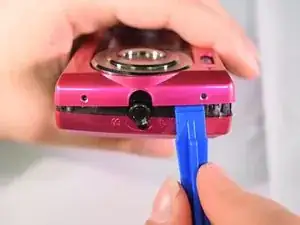

    • Place the plastic opening tool on the crack between the front and back casings.

    • Apply pressure by pulling down on the plastic opening tool to pry the case apart.

  4. KPMK2SjC4aTwNAsR
    KPMK2SjC4aTwNAsR
    TrMYRDeT2uRM1J2J

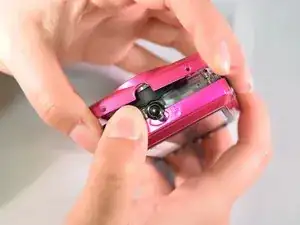

    • Wedge your fingers in the opening and slowly pull the front casing away from the bottom casing until it complete separates from the device.

    • Using too much force in this step can damage your device.

  5. ZFhi5WcVOiZB2ZFi
    ZFhi5WcVOiZB2ZFi
    Ck6QYIBTcNqnvPyy
    FCtWEZwNiSul2bqm

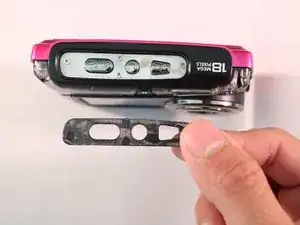

    • Insert the flat end of wide metal spudger into the seam of the plastic buffer surrounding the buttons and pry it open.

  6. F31QVqtBvIVZONhh
    F31QVqtBvIVZONhh
    4CDu3VNU4fOlFK1n
    lVqoYJLM3Crbd3Bo

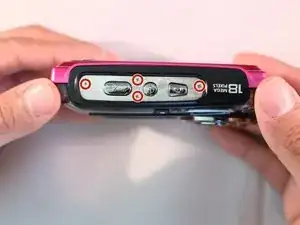

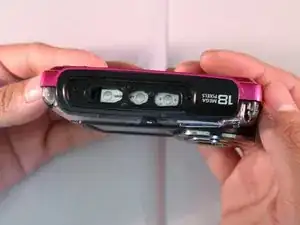

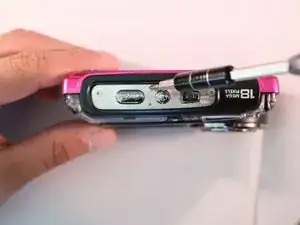

    • Use A #00 Phillips head screwdriver and turn counterclockwise to remove the four indicated screws.

    • Set the screws aside.

  7. u3qr2nULlDP1lD44
    u3qr2nULlDP1lD44
    ueEdwExnFaGTDmrN

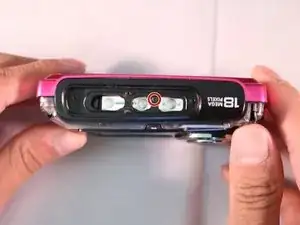

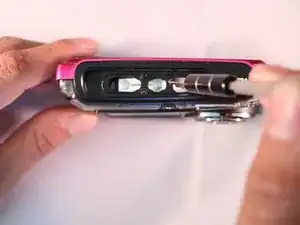

    • Apply pressure and turn counterclockwise to remove the indicated 2.5 mm screw.

  8. AdqWcOOHSRDcKWBS
    AdqWcOOHSRDcKWBS
    X3jZdBpclfSJ6BCf

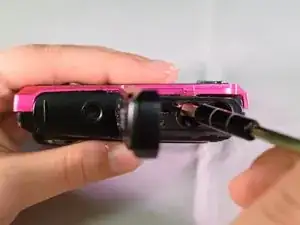

    • Locate the 2 mm screw that is next to the battery compartment.

    • Using the PH J000 phillips head screwdriver, apply pressure to the screw head and turn in a counter clockwise motion until the screw is loose.

    • You do not have to completely remove the 2 mm screw. To prevent losing the screw, you may leave it loosely in its place.

  9. AZZanNA2JmaLrdyw
    AZZanNA2JmaLrdyw
    WGLSVCuwvWmoRe1E
    yWE4n46vhGeekAdP

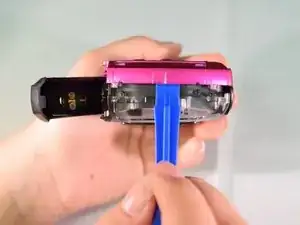

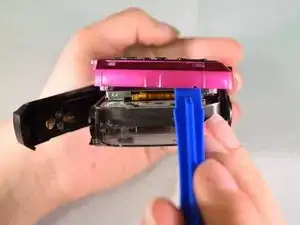

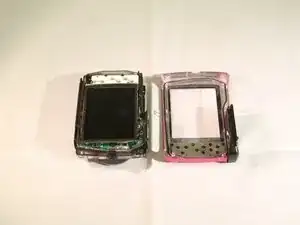

    • Slide the flat edge of the plastic opening tool between the inner casing and the back outer casing.

    • Push up on the plastic opening tool so that the back casing starts to lift from the inner casing.

    • Lifting the casing too far may result in damage. Lift the casing slowly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
