Samsung ATIV Book 4 RAM Replacement

Written By: Daniel
  • Comments: 0
Samsung ATIV Book 4 RAM Replacement

Difficulty

Easy

Steps

3

Time Required

5 - 10 minutes

Introduction

If your computer is experiencing memory issues and/or is running slowly, replacing or upgrading the RAM may solve these issues.

  1. kOEEHlH5rUyxbMHm

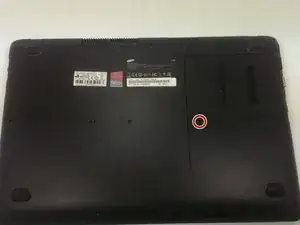

    • Place the computer upside down.

    • Remove one 6.5mm screw on exterior of computer.

  2. OX1ILkjwUD4puqyA
    OX1ILkjwUD4puqyA
    mnKoRTHkVci54I2k

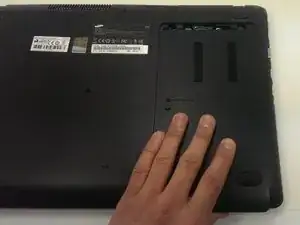

    • Remove the panel by sliding down and lifting it away from the computer, exposing the RAM and hard drive.

  3. tGQTLpAK6RQFxDGG
    tGQTLpAK6RQFxDGG
    Mxe5r4QP2So314M4
    EaAwAtk6D3r5UMQ6

    • Pull the 4 tabs away from the RAM with your finger.

    • Lift away to remove the RAM and replace.

Conclusion

To reassemble your device, follow these instructions in reverse order.
