Samsung ATIV Smart PC 500T Battery Replacement

Written By: Crystal Dinh
  • Comments: 6
Samsung ATIV Smart PC 500T Battery Replacement

Difficulty

Moderate

Steps

5

Time Required

15 - 20 minutes

Introduction

You will be removing the battery from your device. If you haven't done so already, make sure the tablet is completely powered off before continuing.

  1. YL3sNiiqvFjnPfYO
    YL3sNiiqvFjnPfYO
    SosOaxhu4MTekFl4

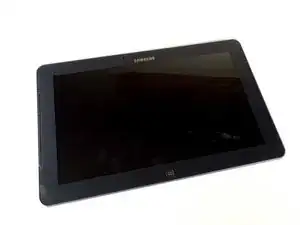

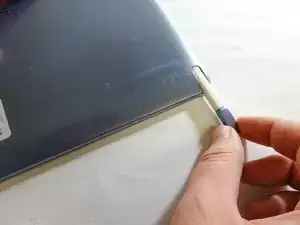

    • Remove the stylus from the device.

    • Place the device screen-up on a hard surface, like a table.

  2. b5YW6d3GFLMpkkW5
    b5YW6d3GFLMpkkW5
    2NckIuIlC4rRUxHf
    tqiAHBBFtBPJvCDM

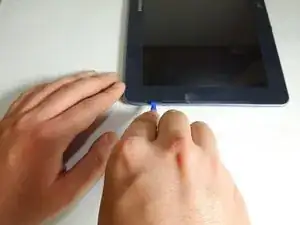

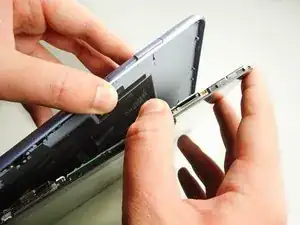

    • Insert a plastic pry tool or opening pick between the glass and plastic case.

    • Work your way around the plastic edge, unclipping the backplate.

    • Once the clips are loosened, remove the backplate. Some force may be necessary.

    • Though you may need to use force, be careful of the pry tool slipping and hurting you!

  3. LAYHsoFoKtukGU2L
    LAYHsoFoKtukGU2L
    pQpSbNKnJ2iGqncU
    VBCCVtSZGHcnFOVP

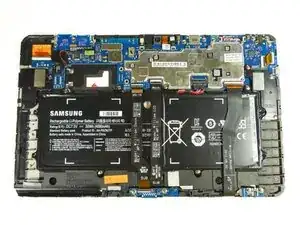

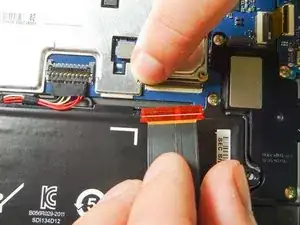

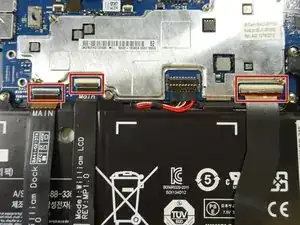

    • Disconnect the three ribbon cables from the motherboard to free the battery.

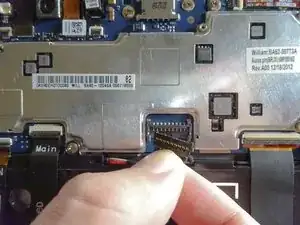

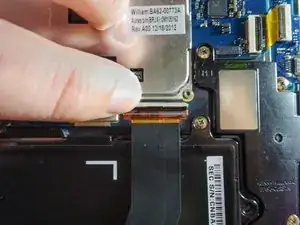

    • Use your finger to lift the flap securing each ZIF connector.

    • Slide the ribbon cable out and towards you. Now it should be completely detached.

    • Repeat with the other two cables.

  4. S2RNgmxDPZZLLbyr
    S2RNgmxDPZZLLbyr
    lZKu1RkKrlBIFBv6
    DpnMAI66h6llUiml

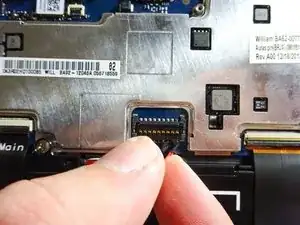

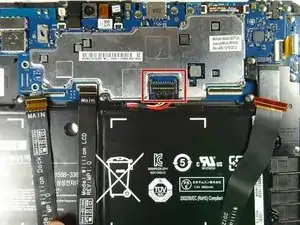

    • Get a firm hold of the power cable as close to the clip as you can.

    • Pull the power cable up and out of the clip.

  5. RHYrTWsTnrm5BUEZ
    RHYrTWsTnrm5BUEZ
    cdVGIFMVBAj4tsrS
    DGkBfwHcMVUvOnHI

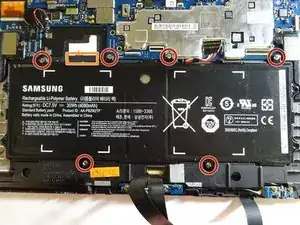

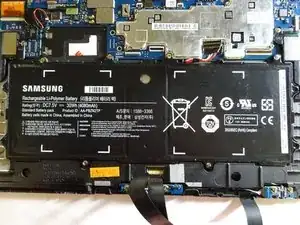

    • Remove the six 3.5-mm screws using the Phillips #00 screwdriver.

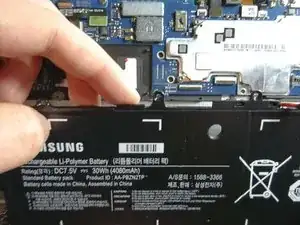

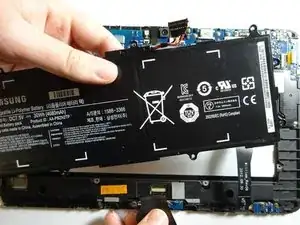

    • Lift the battery out by hooking your finger under the tab on the top side of the battery and pulling it up and towards you. The battery should come out easily.

    Hi Sir, how to change Power IC of this tablet? Samsung ATIV 500t???

    Suny Shah -

Conclusion

To reassemble your device, follow these instructions in reverse order.
