Samsung Captivate Glide Camera Replacement

Written By: Jessica Martinez
  • Comments: 0
Samsung Captivate Glide Camera Replacement

Difficulty

Moderate

Steps

9

Time Required

No estimate

Introduction

If you receive an error message when attempting to use your camera, and resetting to factory settings did not fix it, then you need to replace the camera or ensure that your camera is connected to the motherboard. At times, if you've dropped your phone, the camera may detach from the motherboard.

  1. FoW1HxGfJJptvkXG
    FoW1HxGfJJptvkXG
    uKcjE3tMSlZi6SVs
    tSXjsEPAwGu1vmDg

    • Remove back cover using fingernail or plastic opening tool. The cover pulls up and off.

  2. V1IyAYWbsLdZVwvK
    V1IyAYWbsLdZVwvK
    tfjihCywYTXRTdL6

    • Remove battery with plastic opening tool or finger.

  3. xTCETVVsRceJHXuZ
    xTCETVVsRceJHXuZ
    3OlWPkpvhYM3SYPA

    • Remove the seven screws from backplate using the #00 screwdriver.

  4. GLGqOQA3UpOPHXOF
    GLGqOQA3UpOPHXOF
    GtGtnMWPBnEKMjeK
    uKpOKvPPtvwsDYy1

    • Remove the back plate using the plastic opening tool.

    • There is a lip on each side, and both must be pried up.

    • You can work your way around the edges after prying the two sides.

  5. qR1YKZkaLT1YcMEY
    qR1YKZkaLT1YcMEY
    Il2XYXWyJuWCKPMF

    • Use the plastic opening tool to detach the two tabs connecting the motherboard to the base of the phone.

  6. lGXFCxuyejQsbBt6

    • Disconnect the antenna cable from the motherboard using tweezers.

  7. lRUknAx2Un2EGBUU

    • Remove the single screw connecting the motherboard to the base of the phone by using the #00 Phillips screwdriver.

  8. CQ5OJ4OKxXRO3W5w
    CQ5OJ4OKxXRO3W5w
    5haaiLX2NdUIqgUN

    • Lift the motherboard out of the base of the phone.

  9. ZRkpEePrOC53RDK3
    ZRkpEePrOC53RDK3
    3WiNAxGUSmCDElj1
    AbRhNHMHqDOHkeIo

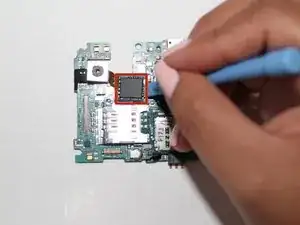

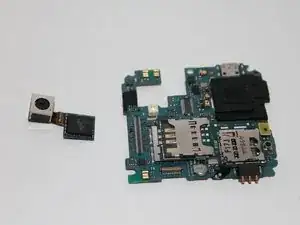

    • Using the opening tool, pry up the camera attachment from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
