Samsung Epix LCD Display Replacement

Written By: Mark Wyse
  • Comments: 0
Samsung Epix LCD Display Replacement

Difficulty

Moderate

Steps

11

Time Required

No estimate

Introduction

This guide shows you how to access the LCD display inside your phone.

  1. an1UJHBgJ6BBmQcC

    • Press button on back of phone below camera.

    • While button is depressed, remove the back panel of the phone by it sliding off (not shown in picture).

  2. QSlJjllirVoiGyWQ

    • Grasp the bottom corners of the battery with two fingers and gently lift.

  3. wZFXaMMtAIGVYsTd

    • Remove the rubber screw cover in the top left corner by prying upwards with an opening tool.

  4. fcOwwEuNJiFv3B5f

    • Use a Phillips #00 screwdriver to remove the six screws on the back of the phone.

    • The upper right screw is 4.5 mm and the others are 6.5 mm.

  5. 33gxvfGKADAQWJpq
    33gxvfGKADAQWJpq
    6LGfAmuEb3HiiYjI

    • Slide the opening tool along the seam on the side of the phone and turn it slightly to unhook the eight clips.

    • There are three clips on each side and two at the bottom of the phone.

  6. yRPjbm6EeEplWGZC

    • Once all eight of the clips have been unhooked, lift the back panel off of the phone.

    • Be careful not to remove the front panel. It will still be connected to the phone chassis by a ribbon cable on the motherboard.

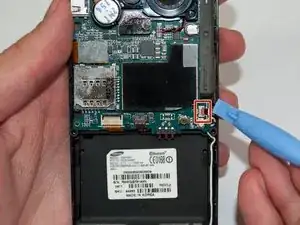

  7. LyXSytrTv1JxxxCD

    • Using an opening tool, undo the ZIF connector halfway up the right side.

    • Carefully remove ribbon cable.

  8. qqAcLORXedf62DIa

    • Remove the front faceplate by lifting it off of the phone chassis.

  9. A4WSXS6FoG15DvNL

    • Using the opening tool, unlatch the LCD ribbon cable.

  10. QXRIj5ST4yMPebyq

    • Using an opening tool or spudger, pry under the lower left and right corners of the LCD screen.

    • The LCD is held in place to the chassis with adhesive strips.

    • Do not pry excessively hard. You may damage the circuitry on the back of the LCD.

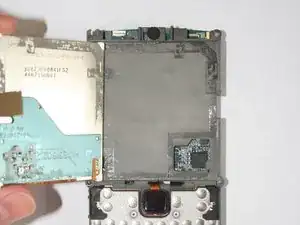

  11. ytCS5uFFIxN5pJvL

    • Lift the LCD display out from phone chassis.

Conclusion

To reassemble your device, follow these instructions in reverse order.
