Samsung Galaxy A70 Screen Replacement

Written By: Adriana Zwink

Comments: 10

Difficulty

Moderate

Steps

Time Required

30 minutes - 1 hour

Introduction

Use this guide to replace a cracked or broken screen on your Galaxy A70.

If the frame is deformed, it's important to replace it to make sure the new screen will mount correctly and won’t suffer damage from uneven pressure.

Before disassembling your phone, discharge the battery below 25%. The battery can catch fire and/or explode if accidentally punctured, but the chances of that happening are much lower if discharged.

Note: This guide instructs you to replace only the screen while leaving the original frame and motherboard in place. However, some replacement screens for this phone come pre-installed in a new frame (a.k.a. chassis), which requires a very different procedure. Make sure you have the correct part before starting this guide.

You’ll need replacement adhesive to reattach components when reassembling the device.

Tools

Step 1

Insert a SIM card eject tool, a SIM eject bit, or a straightened paper clip into the hole on the SIM tray located at the left edge of the phone.
Press firmly to eject the tray and remove it.

Step 2

Switch off your Galaxy A70.
Heat an iOpener and use it to soften the adhesive beneath the back cover. Apply the iOpener for at least two minutes. You might want to repeat this step several times during the back cover removal.
A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the AMOLED display and internal battery are both susceptible to heat damage.

Kann man im Falle dass man kein spezielles Gerät hat auch ein Fön benutzen?

Derzocker39 -

Hallo Derzocker39,

auch einen Föhn kannst du zur Not benutzen. Die Zeit kann dabei variieren. Taste dich am besten langsam heran und überprüfen immer wieder ob sich das Backcover schon anheben lässt. Wenn es schwer werden sollte den Klebstoff zu durchtrennen, kannst du auch zwischenzeitlich immer wieder föhnen. Achte darauf, dass dein Gerät nicht zu heiß wird.

Dominik Schnabelrauch -

Step 3

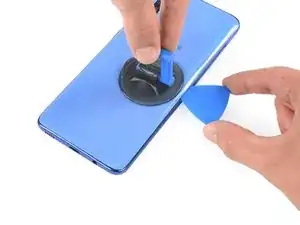

Apply a suction cup to the back of the phone, as close as possible to the center of the right edge.
Pull on the suction cup to create a gap between the back cover and the frame.
Insert an opening pick into the gap.

Step 4

Slide the opening pick along the edge to the bottom right corner.
Leave the opening pick in its place to prevent the adhesive from resealing.
Once you have inserted an opening pick, feel free to remove the suction cup or continue to use it for a better grip during the removal procedure.

Step 5

Insert a second opening pick underneath the bottom right corner of the back cover.
Slide the opening pick along the edge to the top right corner.
If you have trouble with cutting, you can use the iOpener again to soften the adhesive.
Leave the opening picks in place to prevent the adhesive from resealing.

Step 6

Insert a third opening pick underneath the top right corner of the back cover.
Slide the tip of the opening pick along the top edge of the phone to cut the adhesive.
Leave the opening pick in the top left corner to prevent the adhesive from resealing.

Step 7

Insert a fourth opening pick underneath the top left corner.
Slide the opening pick along the left edge of your phone to cut the adhesive.
Leave the opening pick in its place to prevent the adhesive from resealing.

Step 8

Insert a fifth opening pick underneath the bottom left corner.
Slide it along the the bottom edge to cut the remaining adhesive.

Someone must have already worked on the A70 that I got. It had a clear very sticky stringy glue all over the place. They even applied it to that little copper strip (seen near the top of the phone in the pic below, opposite the camera). So when I pulled off the back, that strip came with it. Is that an antenna or something? Guess I will find out...

Frank Zimmerman -

Step 9

Remove the back cover.
After installing the back cover, apply strong, steady pressure to your phone for several minutes to help the adhesive form a good bond — a stack of heavy books works well.

Step 10

Use a Phillips screwdriver to remove the fourteen 4.0 mm-long screws that secure the midframe.

Step 11

The midframe is held in place by plastic clips.
Insert an opening pick between the midframe and front panel assembly on the right edge of the phone near the volume button.

Step 12

Slide the opening pick to the bottom right corner to detach the plastic clips.

Step 13

Continue sliding the opening around the bottom right corner to the bottom left corner to detach the plastic clips.

Step 14

Slide the opening pick along the left edge to detach the plastic clips.

Step 15

Remove the midframe.

Step 16

Use a spudger to disconnect the battery by prying the connector straight up from its socket.

Step 17

Use the flat edge of a spudger to pry up and disconnect the display connector from its daughterboard socket.

Step 18

Apply an heated iOpener to the screen for two minutes.
A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

Step 19

Apply a suction cup to the right edge of the display.
If the phone's screen is cracked, the suction handle may not stick. Try lifting it with strong tape, or superglue the suction handle in place and allow it to cure so you can proceed.
Pull up the suction cup with strong, steady force to create a gap.
Insert the tip of an opening pick into the gap.

Step 20

Slide the opening pick to the bottom right corner to slice the adhesive.
Leave the opening pick in its place to prevent the adhesive from resealing.

seems to me it should state “ slide the opening pick to the bottom “right” corner to slice the adhesive”. , since in step 19 you are starting at the right edge of the display.

christtopher muench -

Hi @docmuench, thank you for your comment! You’re absolutely right, I’ve changed the text. Feel free to change the text directly next time, iFixit is a Wiki and we appreciate every correction and useful hint.

Adriana Zwink -

Step 21

Insert a second opening pick underneath the bottom right corner.
Slide the opening pick along the right edge of your phone. Leave the opening pick in the top right corner.
Leave both opening picks in their place to prevent the adhesive from resealing.

Step 22

Insert a third opening pick underneath the top right corner.
Slide the opening pick along the top edge to slice the adhesive.
When you slice near the front facing camera, insert only the tip (3 mm) of the opening pick to avoid smearing or damaging the camera.
Leave the opening pick in the top left corner to prevent the adhesive from resealing.

Step 23

Insert a fourth opening pick underneath the top left corner.
Slide the opening pick along the left edge to cut the adhesive.
Leave the opening pick in the bottom left corner to prevent the adhesive from resealing.

Step 24

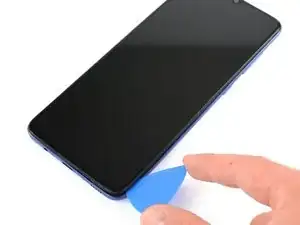

Insert a fifth opening pick underneath the bottom left corner.
Slide the opening pick along the bottom edge to cut the remaining adhesive.

Step 25

Reapply a heated iOpener to the screen to loosen the adhesive underneath.
The remaining adhesive holding the screen to the midframe is located in the center.
Do not use the plastic card underneath the bottom end of the screen in the following steps to avoid tearing the display flex cable.

Step 26

Insert a plastic card on the left edge into the gap between display and the phone assembly.
Press the plastic card in and slide it back and forth until you cut through the entire adhesive.
Once you are sure you cut through the adhesive, remove the four opening picks from the corners.
Do not remove the screen completely yet. The display cable is still threaded through the midframe.

Step 27

Carefully thread the display cable through the frame.

Step 28

Remove the screen.

Conclusion

If possible, turn on your device and test your repair before installing new adhesive and resealing.

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.

To reassemble your device, follow these instructions in reverse order. Apply new adhesive where necessary after cleaning the relevant areas with isopropyl alcohol (>90%).

The best way to secure the new screen is to apply a sheet of custom-cut double-sided tape to the back of the screen.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
