Samsung Galaxy Book Pro 15" Speaker Assembly Replacement

Written By: Alex Diaz-Kokaisl
  • Comments: 0
Samsung Galaxy Book Pro 15" Speaker Assembly Replacement

Difficulty

Moderate

Steps

9

Time Required

15 - 30 minutes

Introduction

Use this guide to replace one or both speakers in your Galaxy Book Pro 15" Laptop.

Before you begin, refer to the Samsung PC Repair Guide for safety information.

For your safety, discharge the battery below 25% before disassembling your device. This reduces the risk of a thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. HTyDgbiLsTi2wgNM
    HTyDgbiLsTi2wgNM
    5aE4tSww6TYMyDLj
    aRGCQqZ4CrH2GU42

    • Before you begin, power down your laptop and unplug it.

    • There are two kinds of rubber feet along the top and bottom of the rear case. Keep track of their position as you remove them.

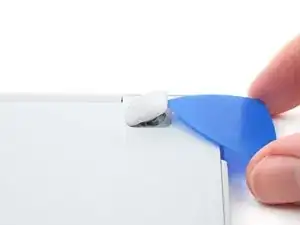

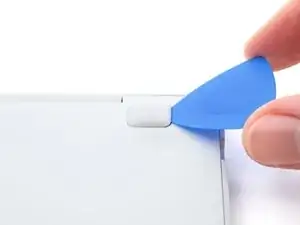

    • Insert an opening pick between the rubber foot and the rear case.

    • Pry up with the opening pick to release the clips securing the foot.

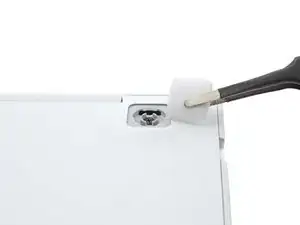

    • Remove the foot.

    • Repeat this procedure for the three remaining feet.

    • During reassembly, press the feet into their correct slot to reinsert them. Mismatched feet won't fit correctly.

  2. jLcXiL1IG2511Ytk
    jLcXiL1IG2511Ytk
    SYUMGMUY1JZ5IDBo

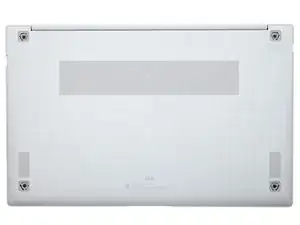

    • Use a Phillips screwdriver to remove the four 4.5 mm-long screws securing the rear case.

    • If you're reassembling with the Samsung Self-Repair kit, be sure to replace the screws with new ones labeled #3313.

  3. dZ15UHrTO2rDYrW4
    dZ15UHrTO2rDYrW4
    utVDfO3wyKKNEnT4
    WEwAYSWxSMHrXvFr

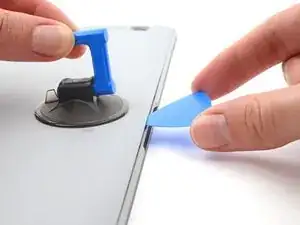

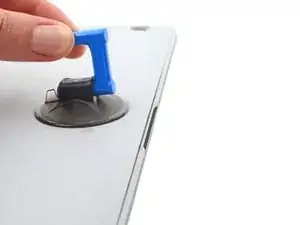

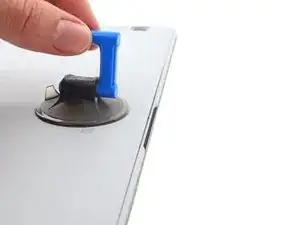

    • Apply a suction cup to the rear case, as close to the center of the bottom edge as possible.

    • Pull up on the suction cup with strong, steady force to create a gap between the rear case and the frame.

    • Insert an opening pick into the gap.

  4. Y2kHCiQhGT6GoIy2
    Y2kHCiQhGT6GoIy2
    tVWucyBNEdF5pSJg
    ukgx5LvtimGNGDOJ

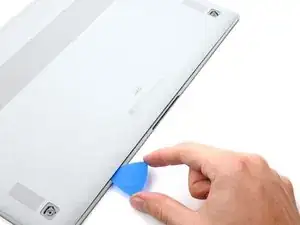

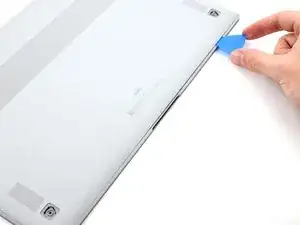

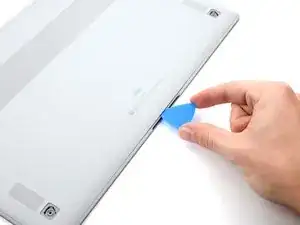

    • Slide the pick along the bottom edge of the rear case to release its plastic clips.

    • Repeat this process for the left and right edges, but stop before reaching the top edge.

  5. KeNh3JiLb2hYVUxH
    KeNh3JiLb2hYVUxH
    4W2uOnJGDkvmPCRj
    wXFQvLmBfuvEFOS6

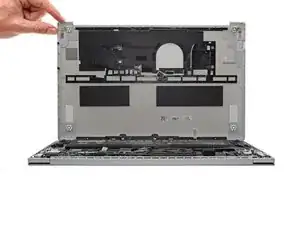

    • The top edge of the rear case is lightly adhered to the frame.

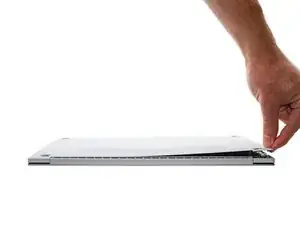

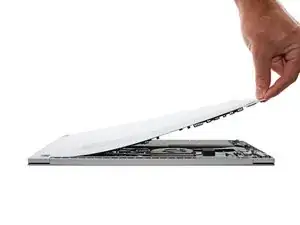

    • Pull the top of the rear case away from the frame to separate the adhesive and release the remaining clips.

    • If you're having trouble separating the adhesive, use an iOpener, hair dryer, or heat gun to soften it.

    • Remove the rear case.

    • During reassembly, perform the following:

    • If you're using a using a genuine Samsung replacement rear case, be sure to peel off any adhesive liners from the rear case before securing the top edge's clips.

    • If you're reusing your rear case, you can use some pre-cut adhesive to re-adhere the top edge if your existing adhesive is no longer sticky.

    • This is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down completely before you continue working.

  6. MAARGWltOuSoyXI3
    MAARGWltOuSoyXI3
    ePOaLgYQuOR2Cw1a

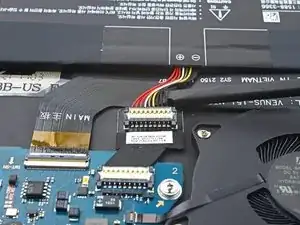

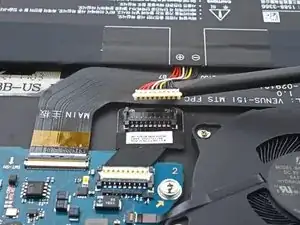

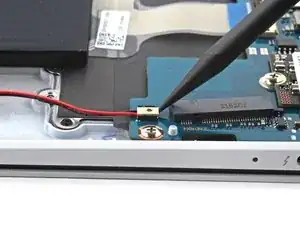

    • Insert a spudger between the frame and the bottom of the battery cable connector.

    • Pry up and disconnect the battery cable connector.

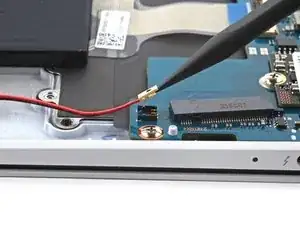

  7. bI4fFmb5MPmJ3CsI
    bI4fFmb5MPmJ3CsI
    cJXNEK2bY1CFnQuB

  8. kqFsG6Y1yNnGPRso
    kqFsG6Y1yNnGPRso
    Y3ReL6yApqSYVbMQ
    NKhc6ybZWEOh4ITL

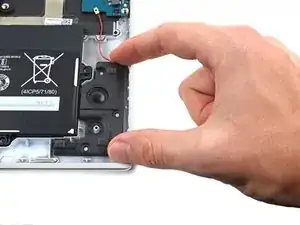

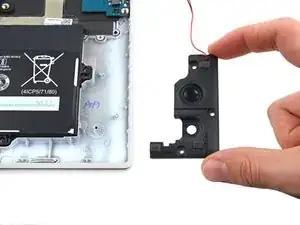

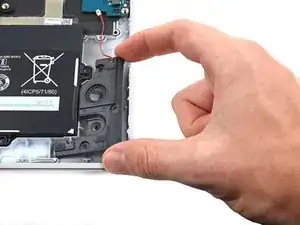

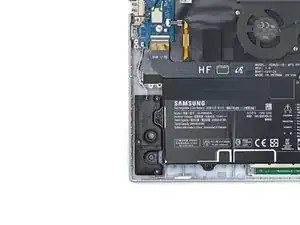

    • Lift the bottom right speaker away from the frame to release it from its rubber grommets.

    • Remove the bottom right speaker.

    • Repeat the disconnection and removal procedure for the bottom left speaker.

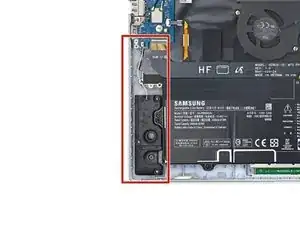

  9. 62tBCWERaAUNCGb4
    62tBCWERaAUNCGb4
    VTAGZab6tRnmMWSA

    • Repeat the removal process for the bottom left speaker.

Conclusion

To reassemble your device, follow the instructions in reverse order and perform the opposite actions, e.g., "reattach" instead of "removing." Skip steps that use heating and prying, and pay close attention to the 📌 bullets as you work through the steps.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
