Samsung Galaxy Pocket Neo S5310 LCD Display, Touch screen Replacement

Written By: ZFix
  • Comments: 0
Samsung Galaxy Pocket Neo S5310 LCD Display, Touch screen Replacement

Difficulty

Difficult

Steps

8

Time Required

25 - 35 minutes

Introduction

How to disassemble the phone and change broken Digitizer / Glass or LCD Display.



________________________Vedeo manual:________________________

  1. NDr6SFZBlymjtPIY
    NDr6SFZBlymjtPIY
    E1OLqy3sN3EYIZ3R
    ieHceRGdLQXCKrqf

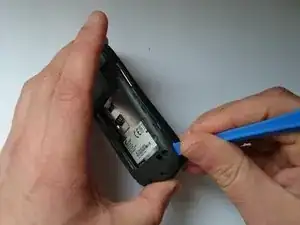

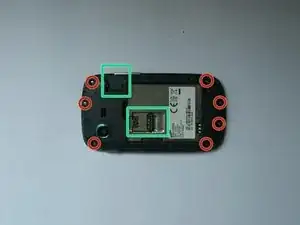

    • Remove any SIM and SD card.

    • Remove 7x Phillips screws.

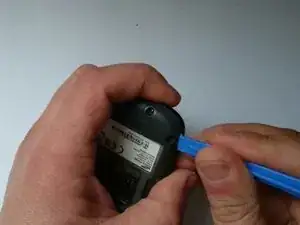

    • Use a plastic tool to disassemble the rear housing.

  2. ql3fFwho5oLRk5XX

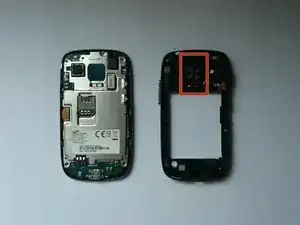

    • The Loudspeaker is located on the rear housing..

  3. fE56xgnbE52k1dNQ
    fE56xgnbE52k1dNQ
    JFYMst1vChbStIQY
    N2vrUAbd2D6CUOBC

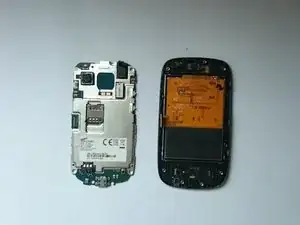

    • Disconnect the LCD Display flex cable.

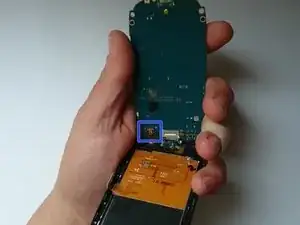

    • Lift up the board and disconnect the Touchscreen flex cable.

    • Now you can remove the Motherboard.

  4. QhmN133yJtNYKCy1
    QhmN133yJtNYKCy1
    4JY3M3KXRYcdNPhK
    MSA5Su16DkhSO6Fs

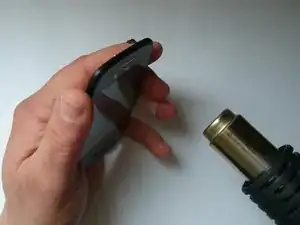

    • Warm the touchscreen to make separating the LCD Display more easy

    • For this manipulation you can use a hair drier.

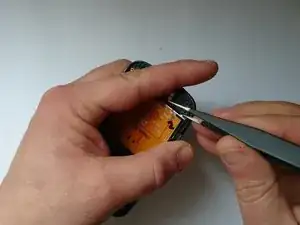

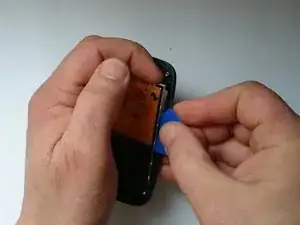

    • In the four corners of LCD display there are small metal plates. Use one of them to lift a little the LCD and put the plastic tool.

    • Be careful not to break the display.

  5. F5rDbFHAggA3GnIh
    F5rDbFHAggA3GnIh
    KtmNNnwxYiDiKKbd
    TTUZZhQLC5FXW6yD

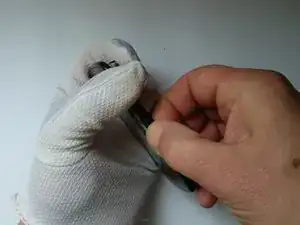

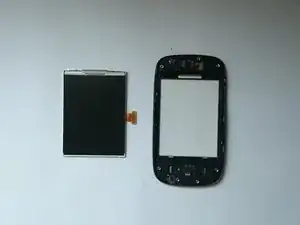

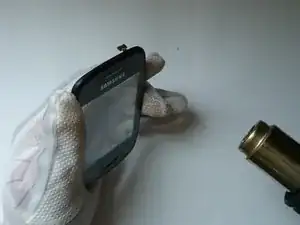

    • After separating the LCD Display, again worm the Touchscreen.

    • If the glass is broken, put a transparent tape to prevent scattering.

  6. IaxTrrgZ1WOoYuUS
    IaxTrrgZ1WOoYuUS
    UFpsptQPZRmCUXE2
    U3dk3tEFSQvJvchY

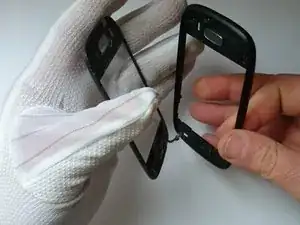

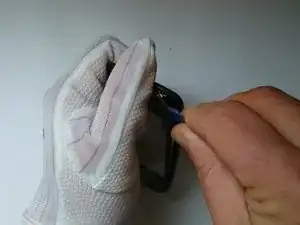

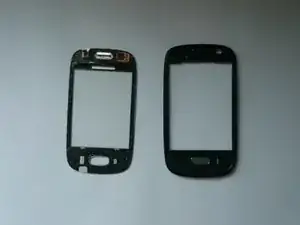

    • Use plastic tools and slowly separate the touch screen from the front bezel.

  7. yWxOHxstudZhSgXL
    yWxOHxstudZhSgXL
    Fgd1xO5WtSXNcrbT
    GtvuY5pyUXXKqRja

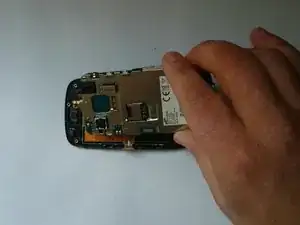

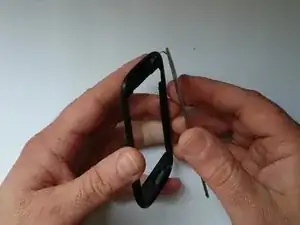

    • If the new spare part has come without adhesive tape. you must put.

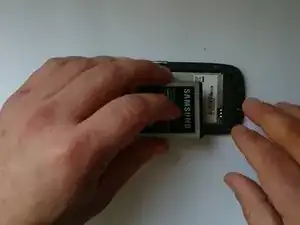

    • Reassemble your device, follow these instructions in reverse order.

  8. OATJx1eykRVNO5JI

    • Did you do it successfully?

Conclusion

To reassemble your device, follow these instructions in reverse order.
