Samsung Galaxy S Blaze Motherboard Replacement

Written By: Rene Bolanos
  • Comments: 0
Samsung Galaxy S Blaze Motherboard Replacement

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

  1. oA1BVioGddgKrYnn

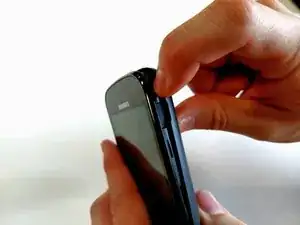

    • Remove the battery cover from the device.

  2. rHtOEt3w3dpa4TKB

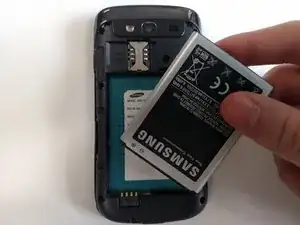

    • Remove the battery from the device.

  3. PACwAYsnRHjldKx5
    PACwAYsnRHjldKx5
    FWMPnaSmBt4XSsMP

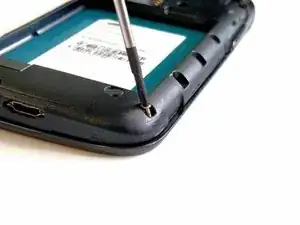

    • Use a Phillips head screwdriver size 00.

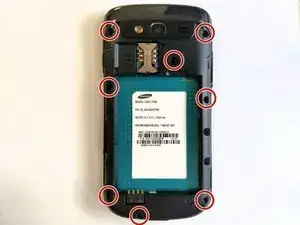

    • Remove the 4mm screws from the frame. The screws can be removed in any order.

    • The eight screws are all the same size.

  4. HBcaReLvJqSmWQBE

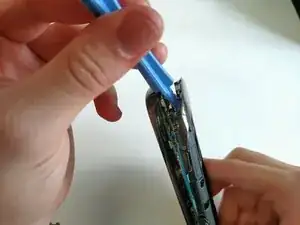

    • Use the blue plastic opening tool to remove the frame from the device.

    • Work around the device with the opening tool until the frame is completely off the device.

    • You may need to use some force to pry the frame off of the device.

  5. 6UJReyUTrdd5fwNY
    6UJReyUTrdd5fwNY
    mOdGhRORpClAjpPi
    ZlTMxfYmadKVi6yL

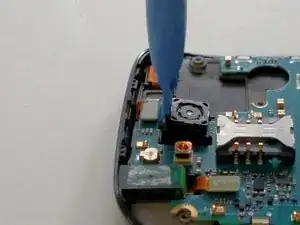

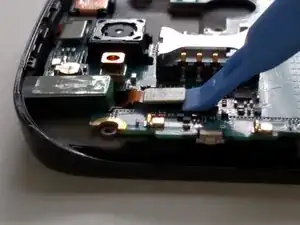

    • The motherboard is held onto the device by 4 ribbon cable connectors.

    • The first 3 ribbon cable connectors are on the same side.

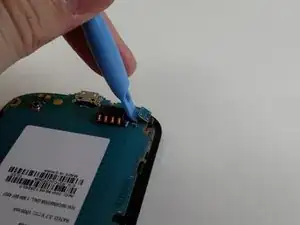

    • Unlatch the first 3 ribbon cable connectors with the blue plastic opening tool.

  6. C1Asqj6hbAtWjZtZ

    • Turn the motherboard over to reveal the last ribbon cable connector.

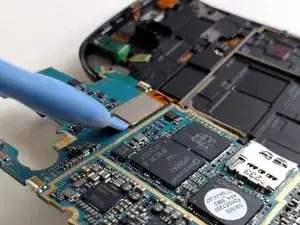

    • Unlatch the final ribbon cable connector with the blue plastic opening tool.

    • Remove the motherboard from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
