Samsung Galaxy S II Front Glass/Digitizer Replacement

Written By: ZFix

Comments: 12

Samsung Galaxy S II Front Glass/Digitizer Replacement

Difficulty

Very difficult

Steps

Time Required

25 - 35 minutes

Introduction

If you have a Samsung GALAXY SII with broken Touchscreen or LCD Display, this manual will guide, how to change them.

This procedure is very hard. You must have good experience to do this !!!

Same steps you can use for replacing Touchscreen&LCD display with frame. This operation is more easy. If you haven't enough experience, I strongly recommend you, to choose this variant.

_______Video manual_______

Tools

Step 1

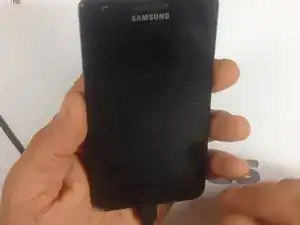

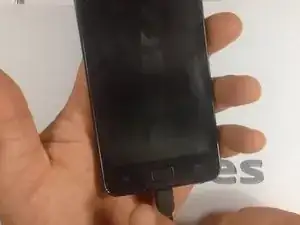

We have a Samsung Galaxy S II with broken screen.

Step 2

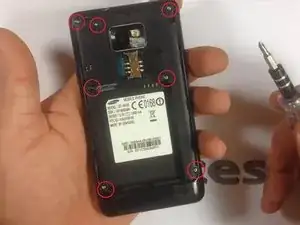

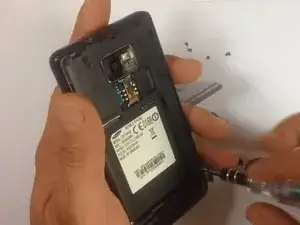

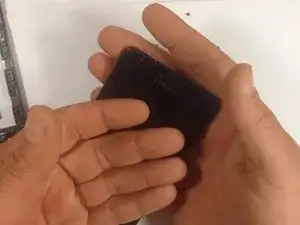

Remove your battery, the SIM card and the SD card.

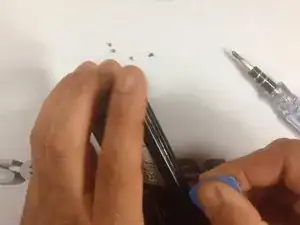

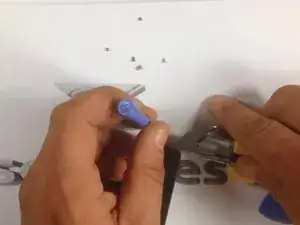

Remove the 7 screws highlighted in red.

Step 3

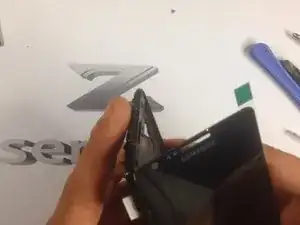

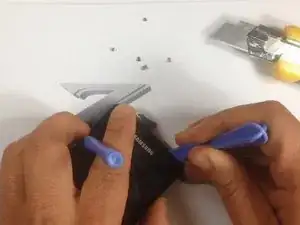

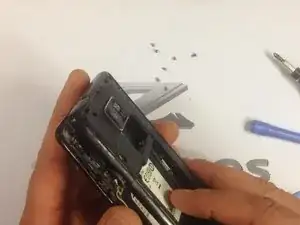

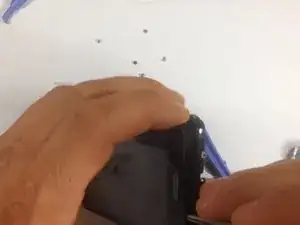

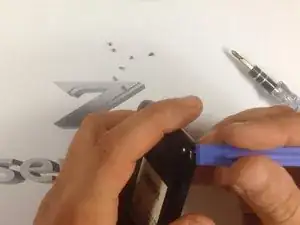

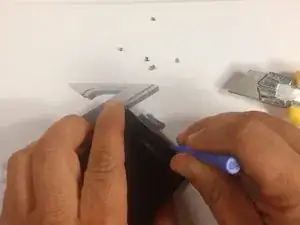

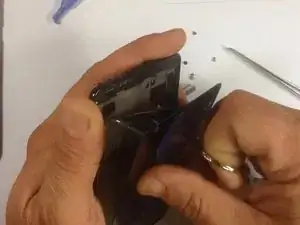

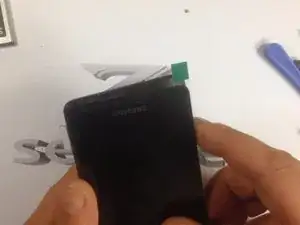

Use a plastic tool to remove the rear housing.

Step 4

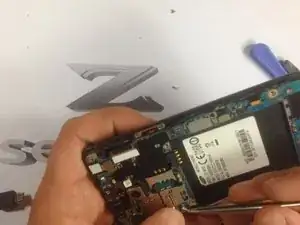

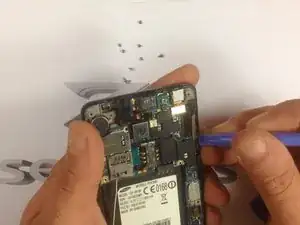

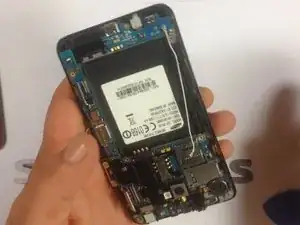

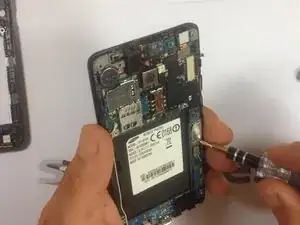

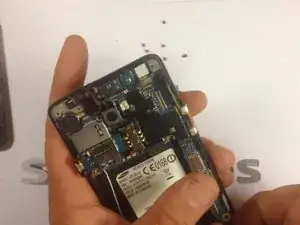

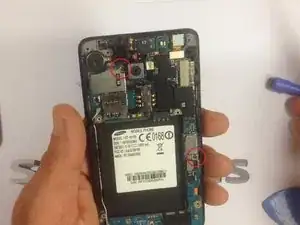

The mother board is held by 2x screws. Remove them.

Step 5

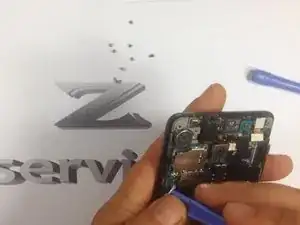

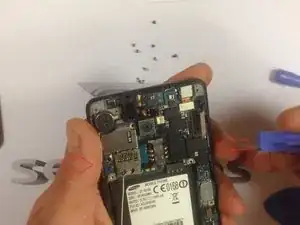

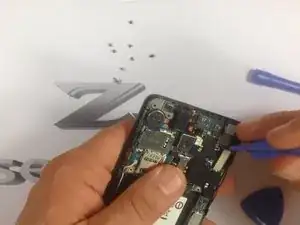

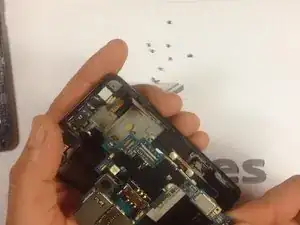

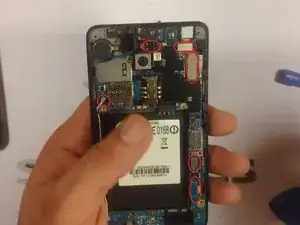

Remove the cables that are highlighted in red, before continuing to the screen.

Step 6

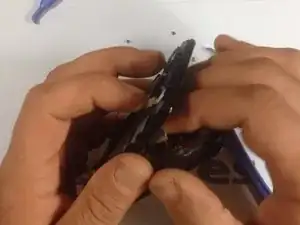

Release the side buttons. The arrow will point you to where they are.

Step 7

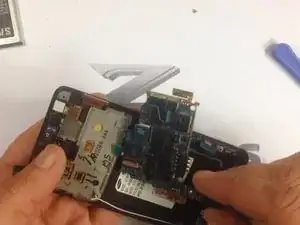

Careful release the motherboard from it's housing.

Step 8

At this moment if you have touch screen with LCD and frame like spare part you are ready for replacing.
We will continue with disassembling LCD and Touch from the frame. Now preheat it before removing!
Use a hot air to soften the adhesive enough to remove the glass.

How can we preheat without damaging the digitizer. Especially if all we need to replace is the front glass only?

Thank you.

Douglas Mutay -

I have to fix my daughters SII and I would also like to know how to preheat the glass? There's nothing in the video either - please help?

Alan Mascall - 02/05/14

If you haven't experience don't try this. You can buy complected part - Touch screen+ Display+Frame. I reheat it until is hard to hold it. There isn't problem if you preheat the screen because this is the broken part. You must take care for the frame.

ZFix - 08/05/14

Step 9

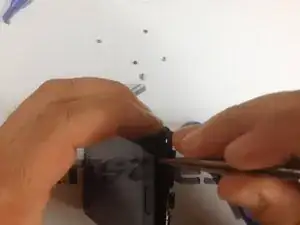

With a cutter, make a room for a plastic tool, then continue with separating the Touchscreen & LCD Display from the frame.

Step 10

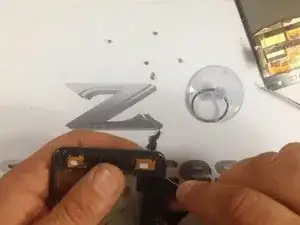

Be careful with the menu buttons flex cable in the bottom side of the touchscreen. You must release it before separating the digitizer from the frame.

Step 11

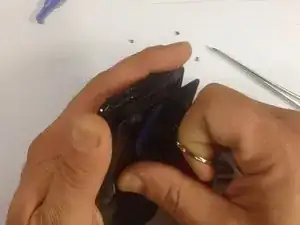

Now, use a suction tool to remove the screen from it's housing. Be careful when doing this, to prevent possible injury.

Step 12

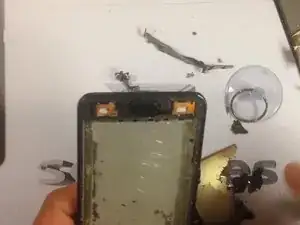

Clean the frame from the remains of tape.

Step 13

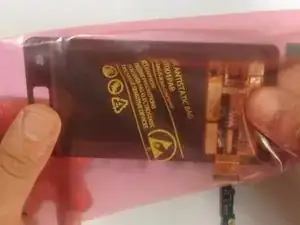

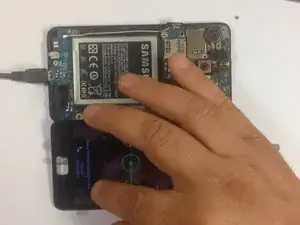

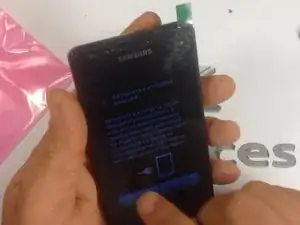

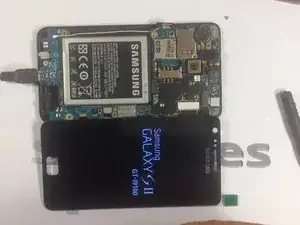

Test the new spare part before reassembling.

Step 14

Install the LCD&Digitiser on it's housing.
Many times the spare parts come without adhesive tape. In this situation you'll need to install double sided adhesive tape yourself. Also you can easy find adhesive sticker exactly for the model.

Step 15

To reassemble your device, follow these instructions in reverse order.

Conclusion

To reassemble your device, follow these instructions in reverse order.
