Introduction

Prerequisite-only guide to remove the midframe in a Samsung Galaxy S10e. The wireless charging coil and NFC coil are both included in the midframe.

  1. VrNWnP6nMMSKFeFw
    • Remove the eight 3.9 mm Phillips screws securing the upper midframe to the phone.

  2. IDa2Iq4HaRdASA1d
    IDa2Iq4HaRdASA1d
    bIsuLnDFxGSePZ4S

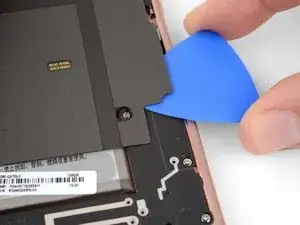

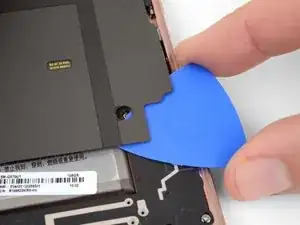

    • Slide an opening pick under the bottom right corner of the upper midframe to separate the adhesive holding it to the lower midframe.

  3. wqbmoM5oZ4OGl6KX
    wqbmoM5oZ4OGl6KX
    crcmA6ihTKRpPucJ

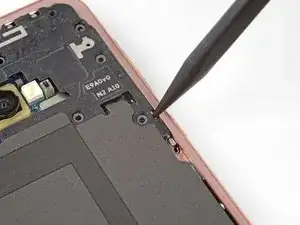

    • Insert the point of a spudger in the small cutout on the right edge of the plastic part of the upper midframe, near the Bixby button.

    • Use the point of the spudger to pry the midframe up from the phone chassis.

  4. naJQHs4K4goepoCk

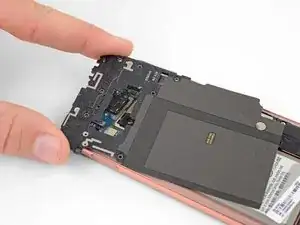

    • Lift the midframe by the plastic section and remove it from the phone.

    • To reinstall, first insert the top edge of the assembly into the phone's frame, and then gently press down on the rest of the assembly to snap it into place.

Conclusion

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
