Samsung Galaxy TabPro S Screen Replacement

Written By: Mitchell Caister
  • Comments: 1
Samsung Galaxy TabPro S Screen Replacement

Difficulty

Difficult

Steps

3

Time Required

2 hours

Introduction

For the Samsung Galaxy TabPro S, model SM-W700NZKAXAR, this procedure is necessary so that there are no safety concerns with a cracked or strained screen. Also, the quality of the screen should be upheld in a high standard. Thus, knowledge in repairing of the screen is advantageous.

  1. WgsynKPVO6W2labC

    • Apply heat around the screen to loosen the glue holding in the screen. A heat gun would be preferable as it needs to get relatively warm.

  2. iB6gYjU2XKZcIEcd

    • Attach the small suction cup near the edge of the screen.

    • Pry in between the screen and the frame with a plastic spudger.

    • Pull up with the suction cup while prying and the screen should begin gently disconnecting.

    • Use the spudger on all edges of the tablet between the screen and the frame.

    • The screen should release.

  3. xAo1dgyHZOjMrPXK

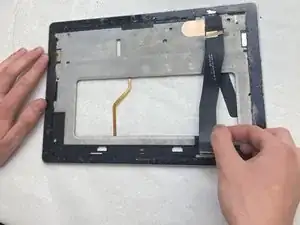

    • Disconnect the thick cable from the motherboard

    • Disconnect the golden cable from the motherboard

Conclusion

To reassemble your device, follow these instructions in reverse order.
