Samsung NP270E5E-K03US RAM Replacement

Written By: Kyle Golden
  • Comments: 0
Samsung NP270E5E-K03US RAM Replacement

Difficulty

Easy

Steps

6

Time Required

15 minutes

Introduction

If you find that your Samsung ATIV Book 2 has begun to operate slowly or is having issues with blue screens it may be time to replace the RAM. In this guide you will learn to do so.

  1. Hpk3G6uqAIBcJoK5
    Hpk3G6uqAIBcJoK5
    2CqAULKentKooDKI

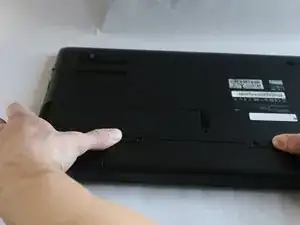

    • Begin with the laptop lying to its back revealing its underside.

    • Locate the two latches on the bottom of the laptop. Slide the latches inward until a faint click is heard.

  2. ECo6ydBppuDfQaff
    ECo6ydBppuDfQaff
    526vmAXehUgUPLBa

    • Completely remove the battery from the laptop.

  3. BbxmcXIiVKOWsVeJ

    • Remove the 4mm screw with a Phillips #0 screwdriver.

  4. MDpuosCGP5IWqMPT
    MDpuosCGP5IWqMPT
    gnV2XVWHJXM1M6wI
    mBRi2ZeLkWY5YjZ3

    • Once the screw holding the cover down has been removed the cover can then be removed by sliding the cover in the direction of the gray arrow on the laptop.

    • The cover can then be removed to reveal the laptops RAM boards and also the laptops hard drive.

  5. TUYAnR31TdZCrLsn
    TUYAnR31TdZCrLsn
    VlrDXVaLkfZ6TCmJ
    QPcyIEnmJYKVkGjd

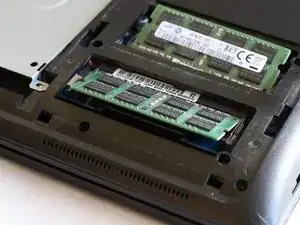

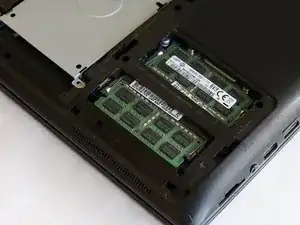

    • The RAM boards are each held in place by a pair of spring latches (indicated by red circles) which must be disengaged.

    • To disengage the latches you must push them gently outwards until a soft click is heard.

    • If you are successful in disengaging the latches the RAM board will pop upwards allowing for easy removal.

  6. kqvSvVRgrd2DoJxs

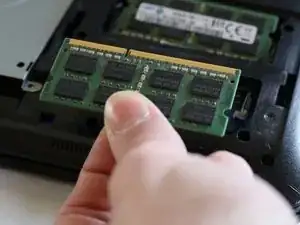

    • You can now pull the RAM board from the housing freeing up space for your new replacement RAM board.

    • Do not try to remove the RAM before the latches have disengaged and the RAM has popped up, otherwise risk damaging the computer / components.

Conclusion

To reassemble your device, follow these instructions in reverse order.
