Introduction
This guide shows how to remove and replace the Wi-Fi card in your Samsung refrigerator.
The Wi-Fi card resides in the top hinge cover. If your fridge has trouble connecting to the local Wi-Fi network, first make sure that the hinge cover doesn't have any metallic items placed over it (which can severely block wireless signals). If the fridge can't pick up any Wi-Fi signals, you may need to replace the Wi-Fi card.
This guide will work for most Samsung Refrigerators . This guide is based on a model RF28R7201SG Refrigerator. If you have a different model, you may encounter some minor disassembly differences, but the overall repair process will be the same.
Tools
-
-

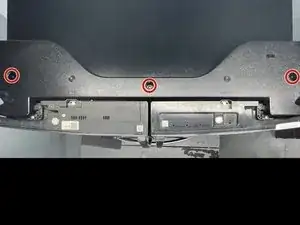

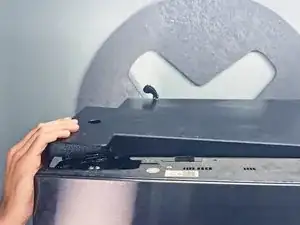

Lift the edges of the hinge cover to loosen it from the refrigerator.
-

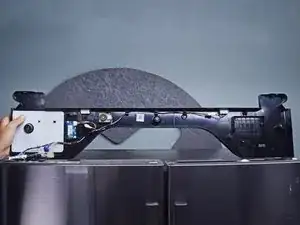

Flip the hinge cover over to access the cables underneath.
-
-
-

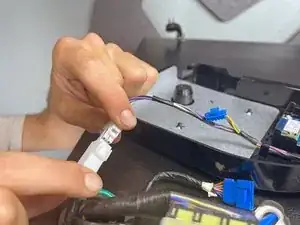

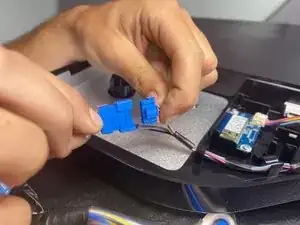

Use your fingers to release the wire connectors under the hinge cover.
-
Disconnect the wiring so you can remove the hinge cover.
-
-
-

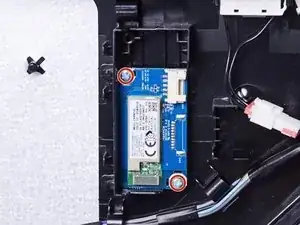

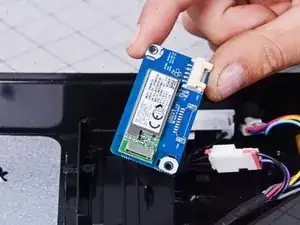

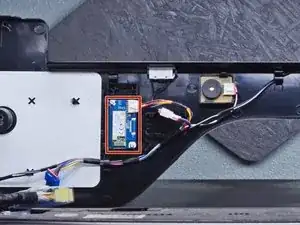

The Wi-Fi card is attached to the hinge cover.
-

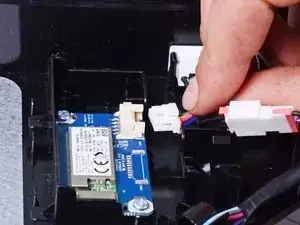

Use your fingers to squeeze and slide the Wi-Fi cable connector out of its socket.
-
To reassemble your device, follow these instructions in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
