Samsung ST76 Motherboard Replacement

Written By: Jessica Bain
  • Comments: 3
Samsung ST76 Motherboard Replacement

Difficulty

Moderate

Steps

6

Time Required

25 - 35 minutes

Introduction

Use this guide to replace a damaged or broken motherboard.

  1. tGA33qPNFxg3CYhU
    tGA33qPNFxg3CYhU
    5VU1WNqiGBuCxuYG
    Ngxig5gRiLI5LOkH

    • Use a Phillips head screwdriver to remove 5 screws from the camera. There are 2 4mm screws on the left side, 2 2mm screws on the right side and 1 4mm screw on the bottom.

    • Do not mix the 5 screws; they are different sizes.

  2. QZYNfWfu3CmFDGqu
    QZYNfWfu3CmFDGqu
    jv6ONY6btCPFYSky

    • Use your fingers to pull the back cover off.

  3. b4tdkRNSYDdoOXZN
    b4tdkRNSYDdoOXZN
    M1VZCnEHibhMQNWb

    • Separate the button panel to reveal the port holding the screen on.

    • Use a plastic opening tool to help with this task.

  4. aa4FqlfyZxFVhDjG
    aa4FqlfyZxFVhDjG
    2W2NglBmOpocGZXO

    • Remove the yellow cable by pulling gently upwards, away from the inside of the camera, until it separates from its port.

  5. RpYY4IZ3yBX5XqNV
    RpYY4IZ3yBX5XqNV
    naQFeOtRgJqwRuDI
    vZsdANMgHKyxJGXf

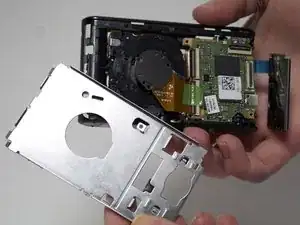

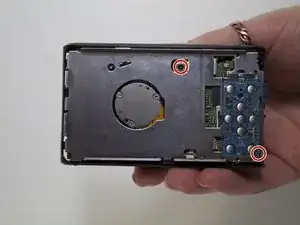

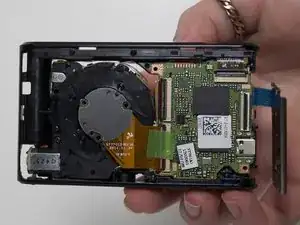

    • Remove 2 3mm screws from the metal plate covering the motherboard and lens using a Phillips #00 screw driver.

  6. WGdMtRsIg1BtLwMV
    WGdMtRsIg1BtLwMV
    eV2jcpiDbLogP5D5
    Txq1O6BrRxAXkjlK

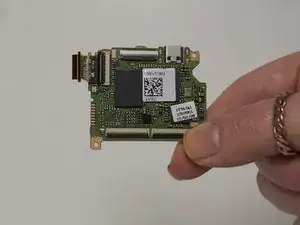

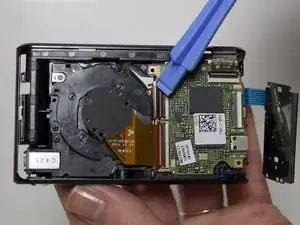

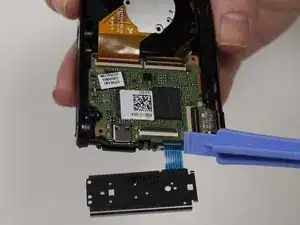

    • Remove the 4 cables connecting the motherboard to the camera body.

    • Use a plastic opening tool to help with this task.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Jessica Bain

Member since: 11/03/15

393 Reputation

3 comments

Thanks for great info. I should add that one can also clean the sensor. Sensor is circular plate with 3 screws at back of the lens. Now the camera is like new!

compand -

Where can you buy a replacement motherboard?

Demaree Wiitala -

ST76 and ST77 are very close relatives.

As it can be seen on the parts, some are marked: ”ST77”

Paul

Paul Cohen -
