Introduction

use this guide in the case that you need to remove the screen of the Samsung Series 7XE700T1A for any reason

  1. MwWsbFiTWFYsUQu5

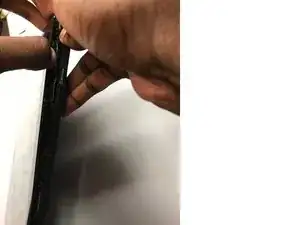

    • Wedge the opening tools inside the side of the device, and move it around the parameter until you have loosened the adhesive holding it together.

  2. AdXSsfqTa2OeQVZQ
    AdXSsfqTa2OeQVZQ
    YPvayWmdTBiGGmZp

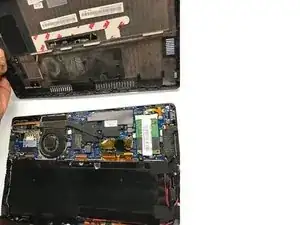

    • With your hands, open up the back panel, separating it from the tablet.

  3. 33oMGdITqIaxgAOi
    33oMGdITqIaxgAOi
    wvLKNo1uNshrntrY
    EoakvysyX4pKcoDK

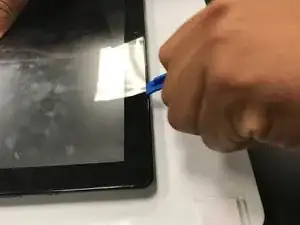

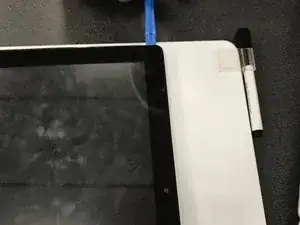

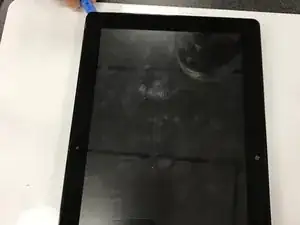

    • With the back panel now removed, wedge the opening tools in between the actual tablet and screen and move it around parameter until you have loosened the adhesive keeping it together.

  4. mAMmhu1CjDwWAUb5
    mAMmhu1CjDwWAUb5
    lDTST1EHd6QYV6ot

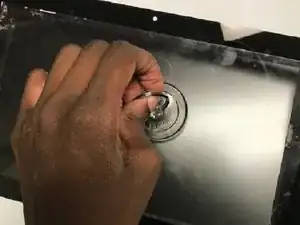

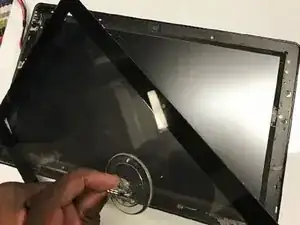

    • Place suction cup firmly on screen. When the cup is secure, lift up the screen and remove the screen.

  5. ROACOs5CRLwcGjDG
    ROACOs5CRLwcGjDG
    TgLW1FJRsypGZCfP
    xbjEQtCYKJOwTD1k

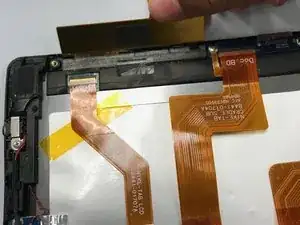

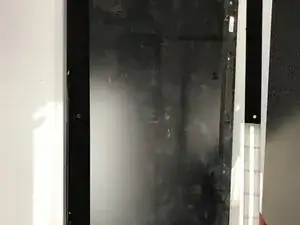

    • There is some circuitry that needs to be removed that is keeping the screen and tablet together.

    • The main circuitry that is connected to the screen and tablet together is the skinny one located in the middle.

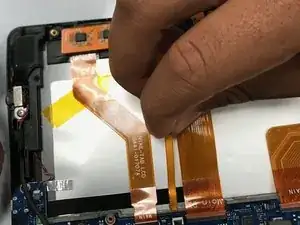

    • Using your hands, pull the circuit out from its position to help loosen the connection.

  6. vqYislpLCJCoVOPV
    vqYislpLCJCoVOPV
    r1yUtmcbfKrlfFaE
    VrJP1YFNcXQ6jD5C

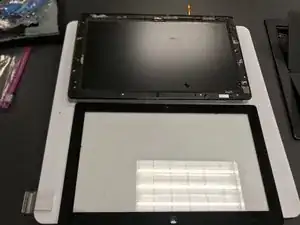

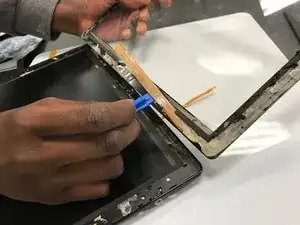

    • With your opening tool, remove the circuitry from off the main screen, thus separating the screen from the tablet completely

Conclusion

To reassemble your device, follow these instructions in reverse order.
