Introduction
This guide will help you remove the button plate from the camera
-
-

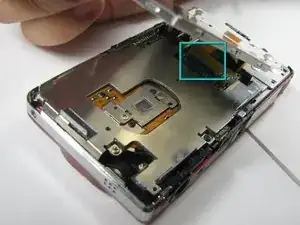

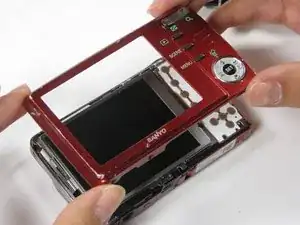

Gently lift up on the left side of the LCD and slowly pull it to the left side of the camera but do not remove entirely, there is a ribbon connector.
-
-
-

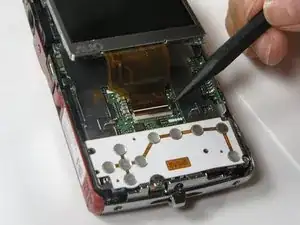

To clear the ribbon connection underneath the screen, lift up the black ribbon gate with the spudger.
-

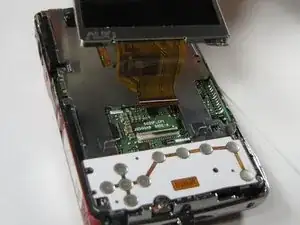

Gently lift ribbon out of the gate and set screen aside.
-
-
-

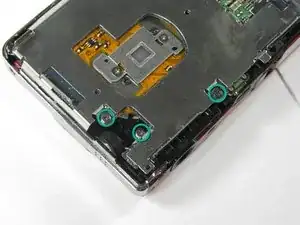

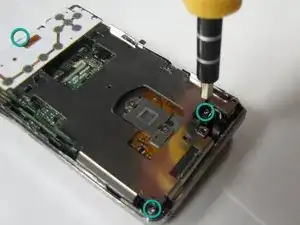

There are five screws of three different sizes which need removal.
-

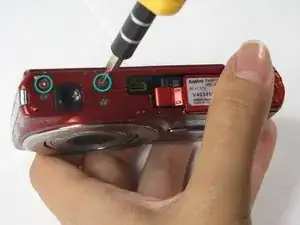

One 4.5mm screw
-

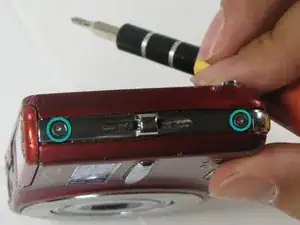

Four 3.5mm screws, one on the button side
-

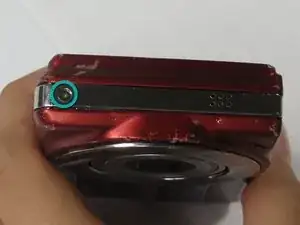

One 5.5mm screws
-
-
-
Slowly lift metal tray to the right.
-

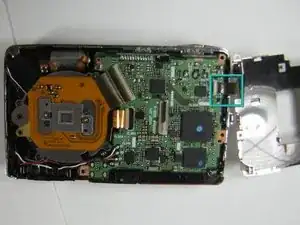

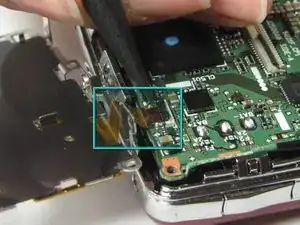

Remove ribbon cable by using the spudger to lift up the black ribbon gate to release the ribbon
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
