Introduction

Use this guide to replace the snooze button on the Sharp SPC026 alarm clock. The alarm clock should be fairly simple to handle and take apart. If you follow the directions, it should be an easy repair.

  1. jNRSRrOBr1DqFZiL
    jNRSRrOBr1DqFZiL
    ykHX1kAVD32B2YSh
    HHAhc3xT2wURsgIL

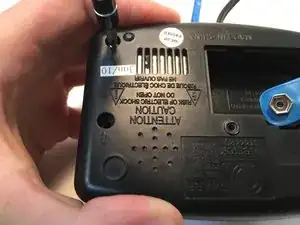

    • Locate and remove the screws found underneath the alarm clock.

    • Separate the bottom and top of the alarm clock by pulling them apart.

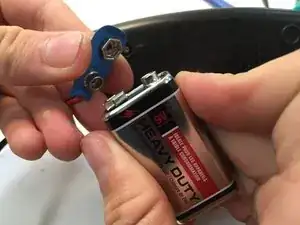

    • Disconnect the battery.

  2. CjD3HCCVepUNgHJO
    CjD3HCCVepUNgHJO
    Ywx5EV6yhNJqbwVi
    HYYduRUvw2Qdi6XG

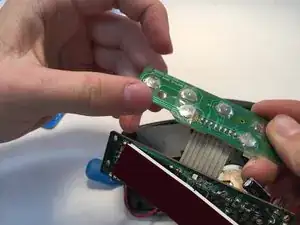

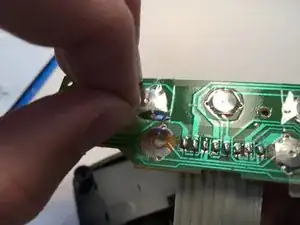

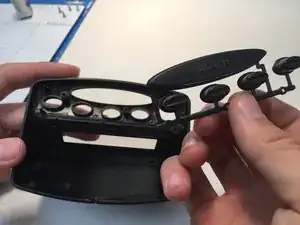

    • Find and remove the button pad on the back side, and locate the broken metal button.

    • Gently lift the tape and the button will come off.

    • Replace the old snooze button with the new one and reattach the tape.

  3. YJE3hSfPUwGhQlKL
    YJE3hSfPUwGhQlKL
    FbR2pRTI1kLW4FVS
    KbXkADQXiydplduj

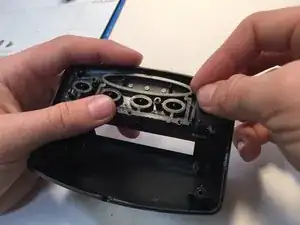

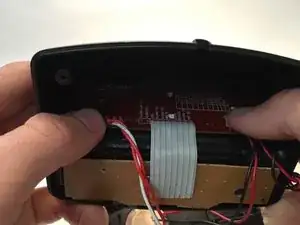

    • Replace the button pad.

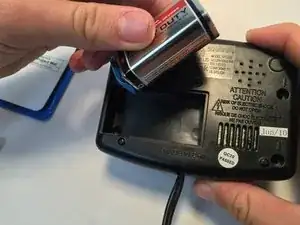

    • Replace the battery.

    • Fit the pieces back together and replace the screws.

  4. pjXK4PG6AMybFpWY
    pjXK4PG6AMybFpWY
    iVZywHUOOXBmHVQZ
    uQwyIT5oKN5Qle1b

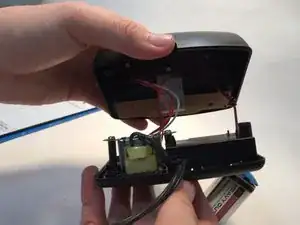

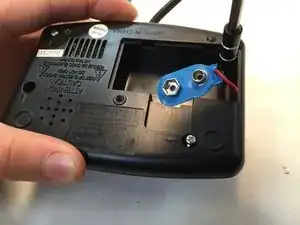

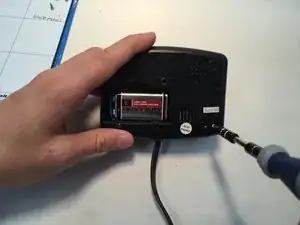

    • Further visual instruction.

  5. sGEElA1YCKIdxQB4

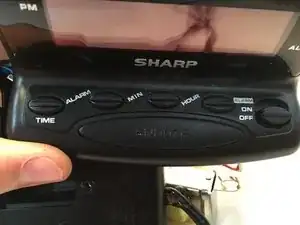

    • The alarm clock's snooze button is now replaced.

Conclusion

To reassemble your device, follow these instructions in reverse order.
