Introduction
In this guide you will learn how to remove the disk drive from a Sony BDP-BX620.
-
-
Power on the device, eject the disk tray, and power off the device.
-
Turn the device over.
-
Lightly apply downward pressure on the black covering on the disk tray until it comes off.
-
-
-
Turn the device around.
-

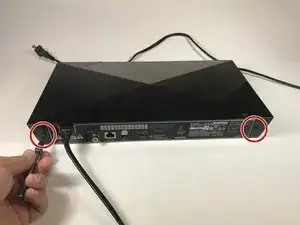

Using a Phillips screw driver, remove the screws on both ends of the device circled red in the image.
-
Slide the side covers on either side towards the back of the device.
-
-
-
Turn the device so that the bottom is facing up.
-

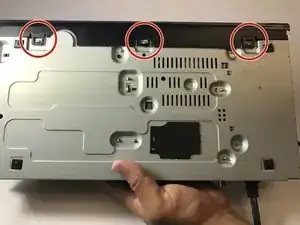

In the bottom, unclip the three plastic clips circled in red.
-
On either side, unclip the plastic clip circled in red
-

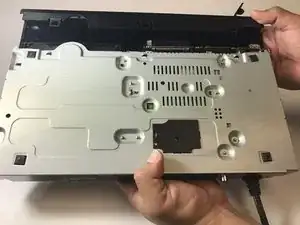

Slide the black covering forwards to remove.
-
-
-

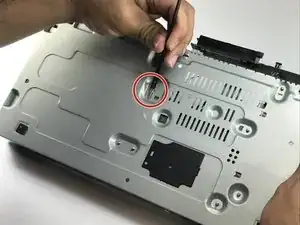

Turn the device over and use tweezers to push the metal clasp until it comes off.
-

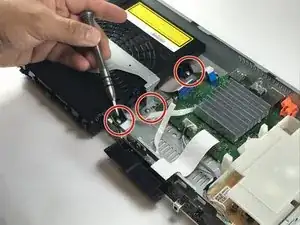

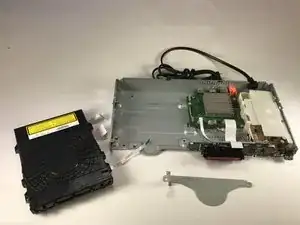

Lift the metal brace located over the disk drive and remove the disk drive and the metal brace.
-
To reassemble your device, follow these instructions in reverse order.
