Introduction
Is your camcorder failing to turn on? Consider using this guide to replace the power button of your device.
-
-

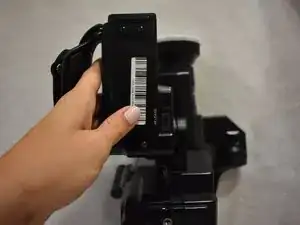

Orient your Betamovie so that the back of the device is sitting flat, and the bottom of the device is facing you.
-

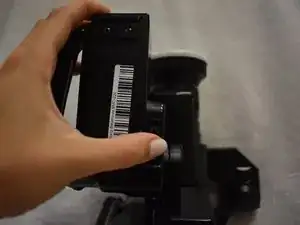

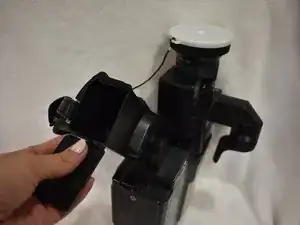

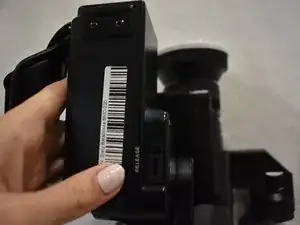

Slide the RELEASE switch up to bring the hand drip down.
-
-
-

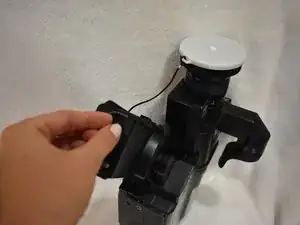

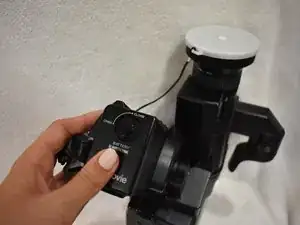

Turn the BATTERY knob to OPEN, and open the lid.
-
Reminder: When inserting a new battery, make sure the knob is turned to OPEN.
-
Be careful not to point the hand grip down when turning the BATTERY knob. The battery pack may fall out.
-
-
-

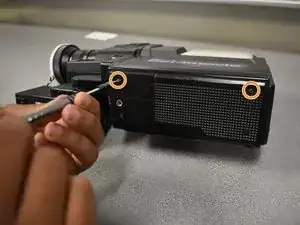

Remove the two screws (2mm x 6mm) on either side of the FILTER switch on the black and white side of the Betamovie using the Phillips #0 screwdriver.
-

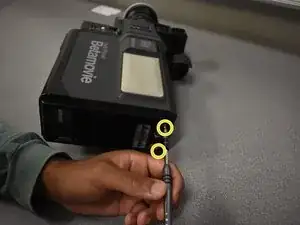

Remove the two screws on the bottom of the camera on the side with the black and white face using the same screwdriver.
-
Remove the screws on the bottom of the back of the camera with the same screwdriver.
-
-
-

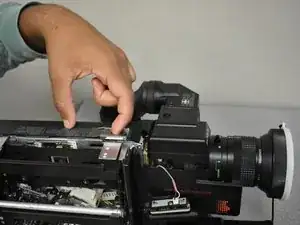

Remove the silver rectangular piece at the top of the Betamovie using your hands.
-

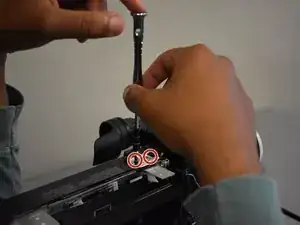

Remove the two screws (2mm x 6mm) under the flat silver piece using the Phillips #1 screwdriver. The silver metal clip comes off once the crews are removed.
-
-
-

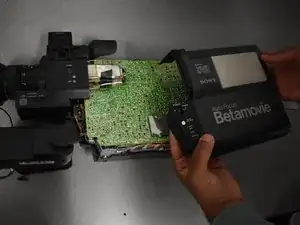

Remove the black and white cover from the Betamovie.
-

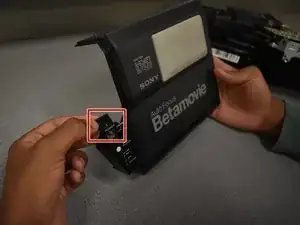

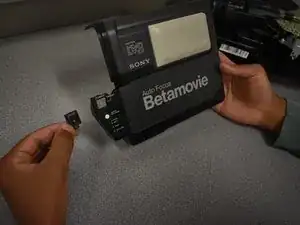

Remove the power button from the black and white face.
-
To reassemble your device, follow these instructions in reverse order.
