Sony Clie PEG-NR70 Memory Module Replacement

Written By: Daniel Soski
  • Comments: 0
Sony Clie PEG-NR70 Memory Module Replacement

Difficulty

Easy

Steps

5

Time Required

5 minutes

Introduction

If your device is having trouble reading memory you probably need to replace the memory module. This guide will show you step-by-step how to install a new memory module.

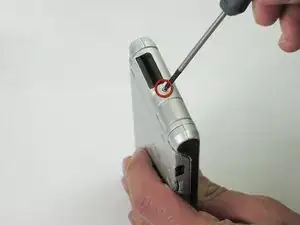

  1. GPUDvUByxNvD3LIt

    • Unscrew the 1.9mm screw located at the top of the device with a Phillips #00 screwdriver.

    • It may be helpful to set up a piece of paper to keep track of where removed screws came from.

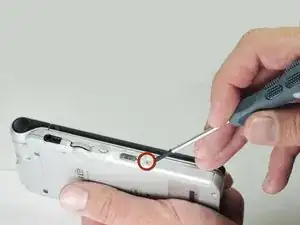

  2. PJ5PvWxEIibJcG2C

    • Unscrew the 2.5mm screw located on the left side of the device with a Phillips #00 screwdriver.

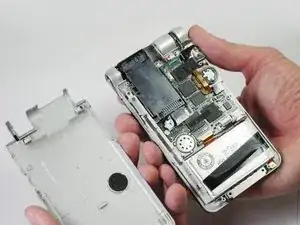

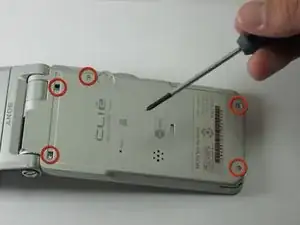

  3. 2KnaoVRq5gtqPSfL
    2KnaoVRq5gtqPSfL
    WaFRgGR1GNCf2LfQ

    • Unscrew the five 2.5mm screws on the back panel with a Phillips #00 screwdriver.

    • Remove the back panel by lifting it away with your hands.

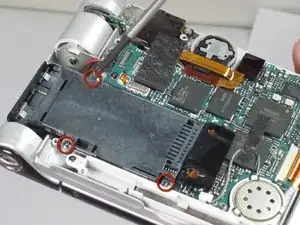

  4. ndqG6SxIIVGYY2hk

    • Holding the memory module in place, unscrew the three 0.9mm screws with a Phillips #00 screwdriver.

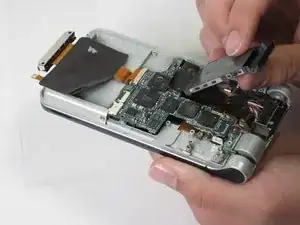

  5. GfoCXyMZZhRJlrHR

    • Lightly grab the memory module and pull it upwards.

    • Make sure you grab the end closest to the edge of the device. You may have to wiggle the module a bit to get it to come free.

Conclusion

To reassemble your device, follow these instructions in reverse order.
