Introduction

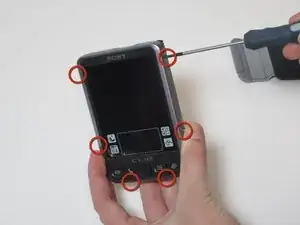

  1. JWmjNrQU1kRHFNtO
    • Remove the six screws holding the case together.

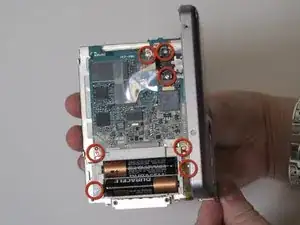

  2. 62aUb5CUJSRBErGk
    • Remove the seven screws holding the motherboard to the device.

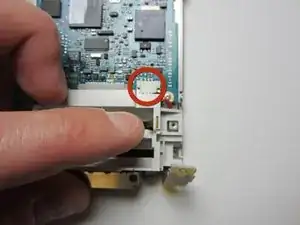

  3. GIXhpMSZaAbYFxET
    • Unclip the battery harness power cable from the motherboard.

  4. ClDIMsyGf6GXB5vM
    • Unclip the scroll wheel power cable from the motherboard.

  5. BwymGwbt13sJnjR6
    • Pull the left clip to remove the cable.

  6. MNSHgZlkCZXEqHQj
    • Pull out the two clips from the center to remove the power cable.

  7. mZWl1urD6LVZxZyS
    • Rotate the motherboard toward you to show the cables on the opposite side of the motherboard.

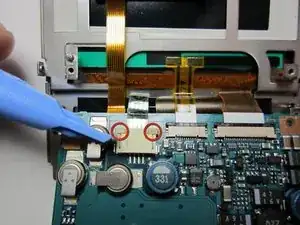

  8. FvhbSaWOF2KOX51C
    • Extend both sides of the left clip to remove the power cable.

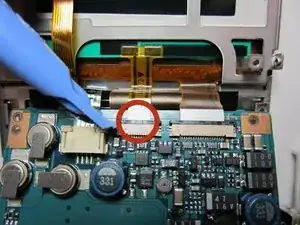

  9. XWS1CtJZLu5TtxGE
    • Pull out the center clip to remove the power cable.

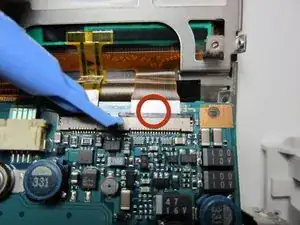

  10. HKhiuspCBAqmCfEs
    • Pull the right clip out to remove the right cable.

  11. oGkcRZK6btd4UHIS
    • The motherboard is removed. To install the new motherboard, follow the directions in reverse.

Conclusion

To reassemble your device, follow these instructions in reverse order.
