Sony Cyber-shot DSC-W690 LCD screen Replacement

Written By: Will Norris
  • Comments: 0
Sony Cyber-shot DSC-W690 LCD screen Replacement

Difficulty

Moderate

Steps

10

Time Required

30 - 45 minutes

Introduction

  1. GJwnXL3WgCuurx5l

    • Open the battery door.

  2. 6MNSnPeATaLySrAk

    • Open the battery lock to release the battery.

  3. k2ijrmO5IeVpOJHK
    k2ijrmO5IeVpOJHK
    3wSgasmyFjyX6rkO

    • Remove the battery.

  4. HPCEkP1BrNLBe1wT

    • Remove the wrist strap

  5. J1CkWLbNatZ5JIsC
    J1CkWLbNatZ5JIsC
    sLKHIgh3VVICH5La

    • Remove all 6 3mm outside screws

  6. pjOhHNrbkQTMmtfF
    pjOhHNrbkQTMmtfF
    PNOMapTDhnFURavb

    • Carefully pry the case apart.

  7. 2Kx3ylGeFO14jOkC

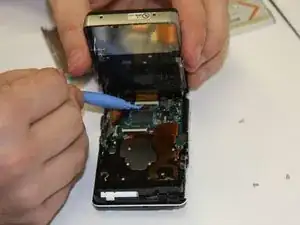

    • Use spudger to delicately open wire contact.

  8. YMMqepwTkrHcLHOe

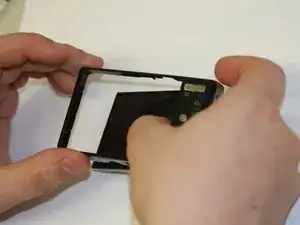

    • Gently push the LCD screen out of back case.

  9. LShXFxpBYagj2NOi

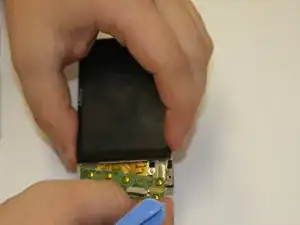

    • Remove the button circuit board.

  10. FEyZi3RCjGNEc6td
    FEyZi3RCjGNEc6td
    kGCQQvKDYIINkSSO

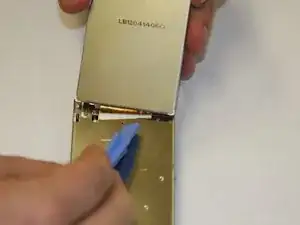

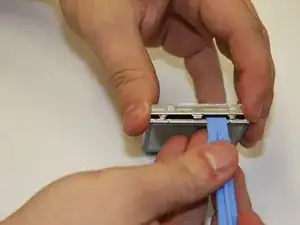

    • Use spudger to pry apart the LCD screen from the support bracket.

Conclusion

To reassemble your device, follow these instructions in reverse order.
