Sony Dream Machine ICF-C717PJ Screen Replacement

Written By: Gurleen Powar

Comments: 1

Sony Dream Machine ICF-C717PJ Screen Replacement

Difficulty

Moderate

Steps

Time Required

10 minutes

Introduction

If the display on the Sony Dream Machine is not showing up properly or has any similar issues, the display monitor may need to be adjusted. Please see the Sony Dream Machine ICF-C717PJ Troubleshooting page: Sony Dream Machine ICF-C717PJ to eliminate other possible issues before tampering with the screen/display.

Tools

Phillips #0 Screwdriver

Step 1

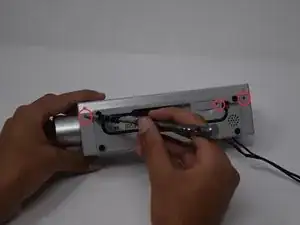

Using a Phillips #0 screwdriver unscrew the three screws that connect the back panel to the device.

Step 2

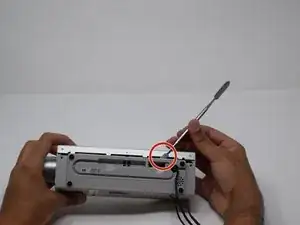

Using a thin flat tool, pry off the panel on the back of the device.

Step 3

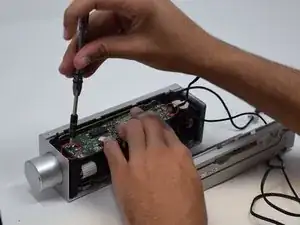

Unscrew the two screws connecting the motor board to the device.

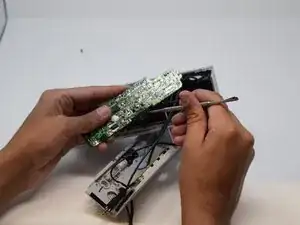

Gently remove the motherboard from the device to gain access to the screen.

Step 4

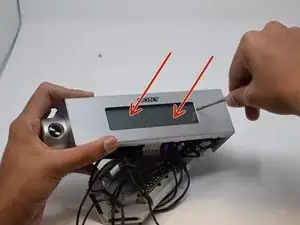

Flip the device around so that the display is facing you. Gently push the display towards the inside of the device.

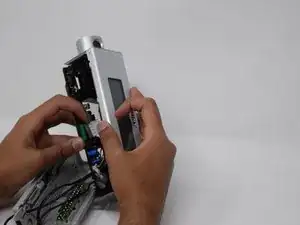

Disconnect the display cable from the motherboard and reconnect the display cable for the new display.
After connecting the new display push it firmly in place so that the display panel is properly aligned with the cutout for the display. When correctly locked in place the display panel should not move around.
