Introduction

This guide will outline how to disassemble and reattach or replace the Sony FDL-220R Watchman antenna. Steps include basic disassembly of the Sony FDL-220R Watchman, and tools include a Phillips #00 Screwdriver and a Spudger.

  1. GFPasLBttjUNTaeT
    GFPasLBttjUNTaeT
    XHZmAtDQiFqFfqkA

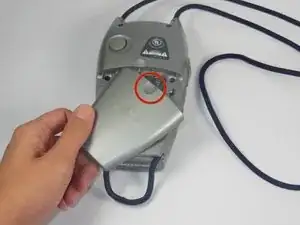

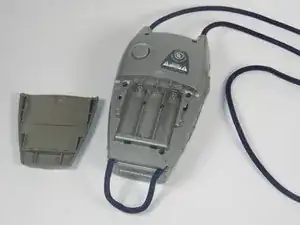

    • Press down on the textured area and push towards the bottom of the device.

    • Gently remove the battery cover.

    • Remove the three AA batteries.

  2. FwtpYWCHBAhY6DHP
    FwtpYWCHBAhY6DHP
    5uRAEkFYpZy11SQJ

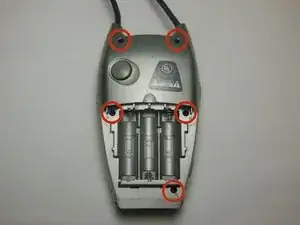

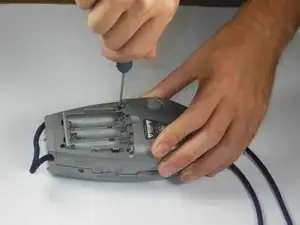

    • Locate the five 5x11mm screws surrounding the battery compartment.

    • Remove screws with a Phillips #00 screwdriver.

  3. Yvgdn6TQidvR5xtT
    Yvgdn6TQidvR5xtT
    iHfbgtSFCByVtGU3

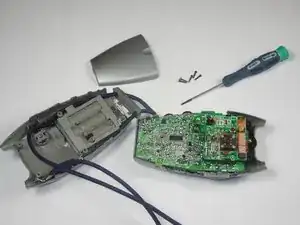

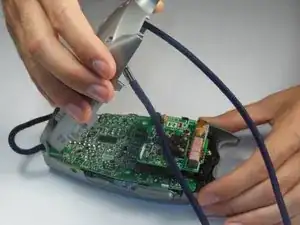

    • Grasp the entire back half of the Watchman's casing.

    • Snap off the casing from the bottom of the device.

    • Gently pull off entire back casing.

    • Buttons may fall out upon opening casing. See the button replacement guide to fix buttons.

  4. D1DtCDZvJPipfBLU
    D1DtCDZvJPipfBLU
    6TRVjUhRXp1UJ5i1
    cQRknyqCvvLUMFOX

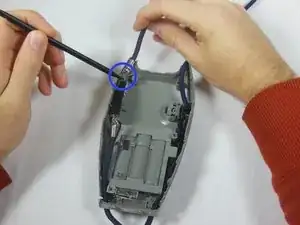

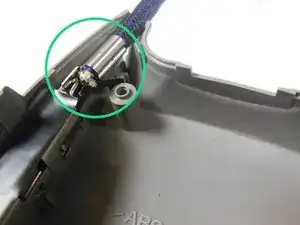

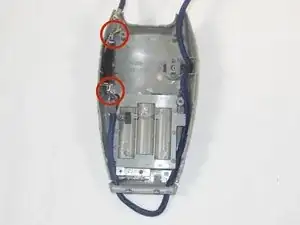

    • Locate the two metal tabs which are meant to hold the antenna in place.

    • Pry back the metal tabs with a spudger.

    • Hook the antenna into the metal tab.

    • Ensure that the antenna is fully enclosed in the metal tab.

Conclusion

To reassemble your device, follow these instructions in reverse order.
