Sony FDL-220R Watchman Battery and Battery Contacts Replacement

Written By: Sam Putnam
  • Comments: 0
Sony FDL-220R Watchman Battery and Battery Contacts Replacement

Difficulty

Moderate

Steps

5

Time Required

15 minutes

Introduction

This guide will outline how to replace the Sony FDL-220R Watchman batteries and clean the battery contacts if they are corroded. Steps include basic disassembly of the Sony FDL-220R Watchman, and tools include a Phillips #00 Screwdriver and a solution of warm water and baking soda.

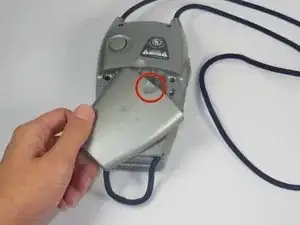

  1. IfOvnXoOgiEDR2hJ
    IfOvnXoOgiEDR2hJ

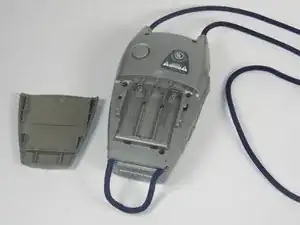

    hmkLViovkJmjd2Pr

    • Press down on the textured area and push towards the bottom of the device.

    • Gently remove the battery cover.

    • Remove the three AA batteries.

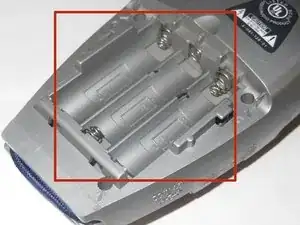

  2. 1RHvDKaCjxWES5VW

    • Inspect battery contacts for any signs of damage.

    • Clean battery contacts with a solution of warm water and baking soda if there is corrosion.

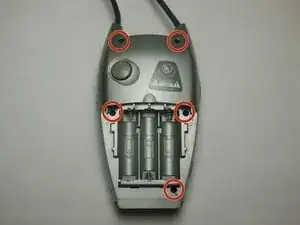

  3. tAlJZHQRJlFTFk6O
    tAlJZHQRJlFTFk6O

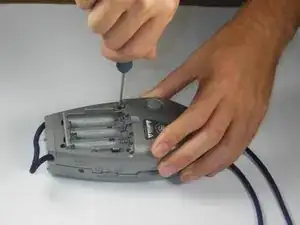

    CSbEqjIZMb2qK5Ng

    • Locate the five 5x11mm screws surrounding the battery compartment.

    • Remove screws with a Phillips #00 screwdriver.

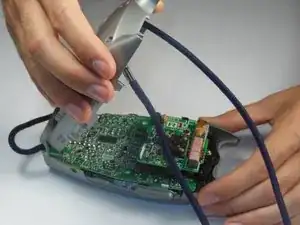

  4. cvec6PbtJWLMXsyE
    cvec6PbtJWLMXsyE

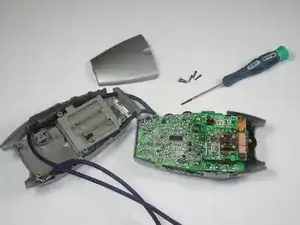

    5OkRE34UXXrgjKbu

    • Grasp the entire back half of the Watchman's casing.

    • Snap off casing from the bottom of the device.

    • Gently pull off entire back casing.

    • Buttons may fall out upon opening casing. See the button replacement guide to fix buttons.

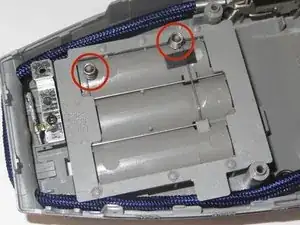

  5. WNiRHnO1YlP3FblK

    • Inspect the two small springs on the back of the battery compartment.

    • Clean contacts with a solution of warm water and baking soda if there is corrosion.

Conclusion

To reassemble your device, follow these instructions in reverse order.
