Sony SRS-XE200 Speaker Assembly Replacement

Written By: Kristen Gismondi
  • Comments: 0
Sony SRS-XE200 Speaker Assembly Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

  1. HXBtUnSSktaVdOQ2
    HXBtUnSSktaVdOQ2
    KpqW4DLtyIXawFWO

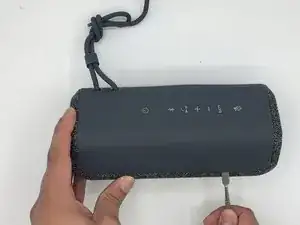

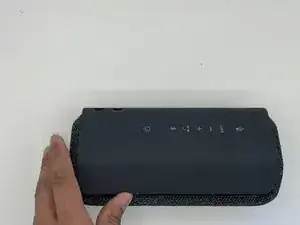

    • Pry the outer cover of the speaker from the body using a spudger.

    • A clicking noise can be heard as the cover is detaching.

  2. BsLBnX6qgmbK5Bk2

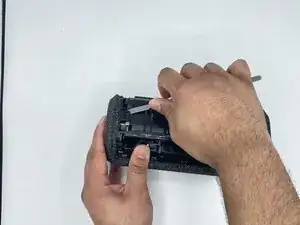

    • Pry the rubber cap away from the body of the speaker using a spudger.

  3. ZP4HwmxrjuJ35ZBG
    ZP4HwmxrjuJ35ZBG
    SBTclj4dgUq1HUkC

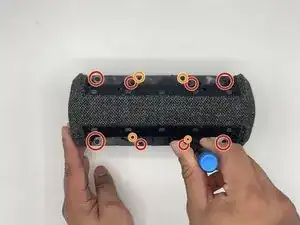

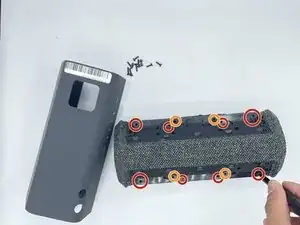

    • Remove the eight 1 mm screws that connect the motherboard case and the speaker case with a Phillips #1 screwdriver.

    • Remove the four 0.8 mm screws that connect the motherboard case and the speaker case with a Phillips #1 screwdriver.

  4. GXGevqLCGqMMIFkX
    GXGevqLCGqMMIFkX
    LWPvaoskpBpEymSl

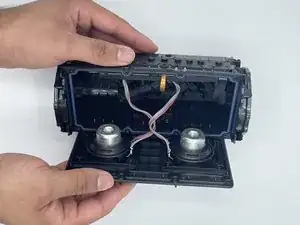

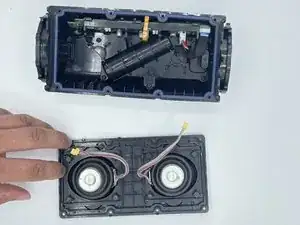

    • Unplug the colored wires from the motherboard to detach the speaker assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
