Introduction
If the Sony TCM-919 is not recording sound, this guide provides replacement solutions. Comprehensive device opening and dismantling up to microphone replacement will be covered.
-
-
Turn the device around so that the back cover if facing upward. Use your thumbs to press down firmly and then push the battery door cover open.
-
Remove any batteries.
-
-
-

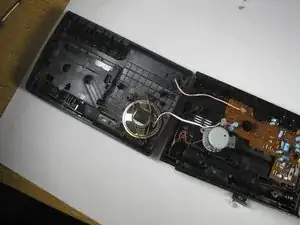

Look to the back of the top cover.
-
Desolder the two wires connected to the mircophone using the soldering station.
-
-
-

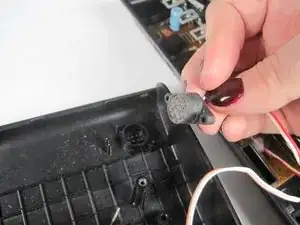

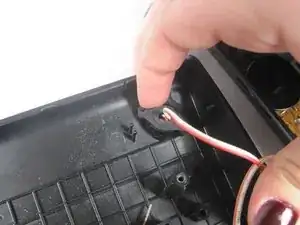

Gently remove the rubber top from the two plastic knobs that hold the microphone in place.
-

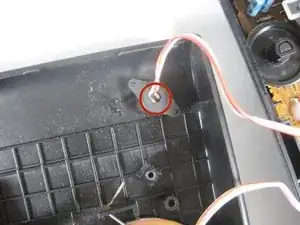

Remove the microphone by pulling up.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
