Sony Vaio Fit 13A Back Cover Replacement

Written By: Alex Prange
  • Comments: 0
Sony Vaio Fit 13A Back Cover Replacement

Difficulty

Very easy

Steps

3

Time Required

5 minutes

Introduction

Removing the back cover of your laptop is the first step in many repair processes. This guide will show you the quick and easy way to remove the back cover on your Sony Vaio Fit 13A laptop.

  1. D6cAKHCfKMm5Sv3N
    D6cAKHCfKMm5Sv3N
    52OGHCZRtjJ2KBGZ

    • Starting with the laptop top-down, locate and remove the twelve 1mm Phillips #0 screws securing the back cover to the main body of the computer.

  2. 2QJJsayImbYSlPXn
    2QJJsayImbYSlPXn
    lynJEslTOeB1nhbS

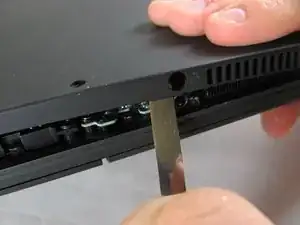

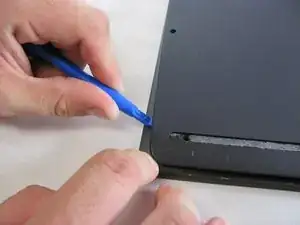

    • Use the Plastic Opening Tools or Metal Spudger to carefully loosen back cover from the body of the computer.

    • Be sure to avoid headphone jack when removing back cover by lifting cover away from computer and up.

  3. owZAOwECDQ6eqVxb

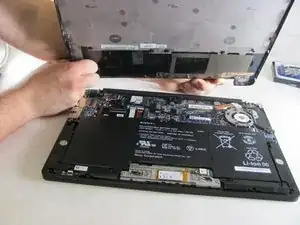

    • Lift off back cover to access inner components of computer.

Conclusion

To reassemble your device, follow these instructions in reverse order.
