Sony Vaio Fit 13A SVF13NA1EL Screen Connector

Written By: Olivia
  • Comments: 5
Sony Vaio Fit 13A SVF13NA1EL Screen Connector

Difficulty

Moderate

Steps

5

Time Required

10 - 15 minutes

Introduction

Laptop screen having connectivity issues? Need to replace the screen connection? Look no further!

  1. Kndweo2vumKhrr4q

    • Flip over the screen

    • Remove all 8 screws as shown circled in the image using a Phillips #0

  2. ojJj5EqrknAB6deD
    ojJj5EqrknAB6deD
    3XjPHDPFaWY1CeX1
    SvGb2OPUeJOVVDYN

    • Flip the screen back over.

    • Use a plastic spudger to remove the top section of the cover.

  3. gllCj2GYrjZUfIkH

    • Unplug the screen connecter from the back of the screen.

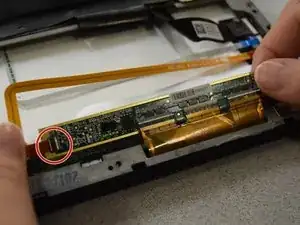

  4. 1ZksgDQkHpAsJ2vL

    • Disconnect the ribbon wire from the LCD connector by gently pulling it.

  5. SMhZUuRtZWZs2Zft
    SMhZUuRtZWZs2Zft
    oHnSqCRFilbXjUEx

    • Gently raise the metal framework of the laptop to reveal the remaining portion of the screen connector.

    • Follow the ribbon wiring to where it connects to the screen.

    • Carefully pull the wiring to disconnect and click it back in place to reconnect.

Conclusion

To reassemble your device, follow these instructions in reverse order.
