Introduction
This guide will show you how to release the optical drive. There are a variation of screws that need to be removed before you can release the optical drive by sliding it out. Please read the instructions while using the pictures for reference.
-
-
Position the laptop screen-side down as shown.
-
In this position the battery housing will be located on the right hand side.
-
-
-
There are two screws on the left hand side of the laptop near the IR (Infared remote) receiver (see image). Remove them using a Phillips #00 Screwdriver.
-
Slide the speaker panel towards the left, then carefully flip it over onto the keyboard.
-
-
-
On the inside of the speaker panel, using a spudger, push the beige tab in the direction of the ribbon. It should only move a small amount.
-
Remove the ribbon by gently pulling on it, there should be little or no resistance.
-
Now the speaker panel can be set aside.
-
-
-

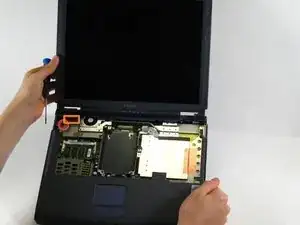

Remove the metal screw that will be located at the red circle.
-

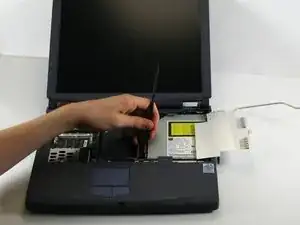

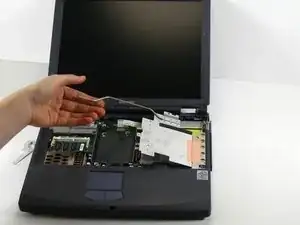

Pull on the green strip, and the keyboard should come free easily.
-
-
-

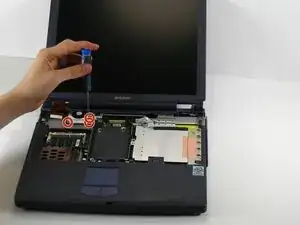

Remove the three screws surrounding the fan.
-
Take off the guard that you just unscrewed.
-

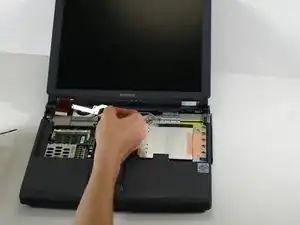

Carefully flip over the heat pipe and the metal sheet connected to it.
-
-
-
Use a spudger to pry the ribbon connected to the optical drive.
-

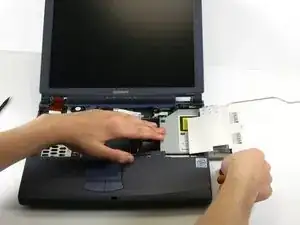

Slide the optical drive free of the enclosure.
-
To reassemble your device, follow these instructions in reverse order.
