Introduction
The removal of the WiFi card is very simple for even the least tech savvy people. The only tools necessary are a plastic opening tool such as a spudger and a Phillips #00 screwdriver. Once these tools are obtained, the steps are very easy to follow.
-
-
Remove cover for the extended battery connector. Use your finger nail or a plastic opening tool to remove it.
-
Remove the two rubber feet at the back of the computer, these can be removed in the same way.
-
-
-
Remove the four 5.6mm Philips #00 screws located at the top of the computer.
-
Remove the eight 3.6mm Philips #00 screws on the base of the computer.
-
-
-

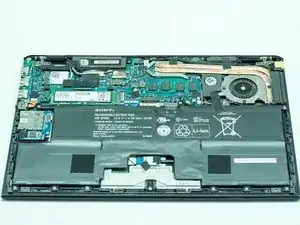

Using a plastic opening tool, pry the plastic casing away from the base of the computer, the remaining clips around the edges can be released using your hands.
-
-
-
Remove the black tape from on top of the WiFi card.
-

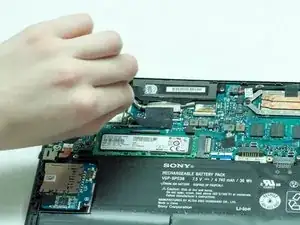

Use the spudger to remove the white wire from the WiFi card.
-
-
-

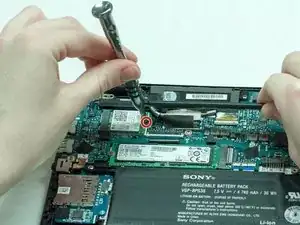

Remove the 4.2mm Philips #00 screw located at the top of the battery.
-

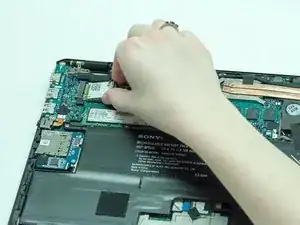

Simply lift the WiFi card away from the computer.
-
To reassemble your device, follow these instructions in reverse order.
