Sony Vaio VPCEG37FM Optical Drive Replacement

Written By: Ramon Ogaz
  • Comments: 1
Sony Vaio VPCEG37FM Optical Drive Replacement

Difficulty

Easy

Steps

4

Time Required

30 seconds

Introduction

The optical drive needs to be replaced when it stops reading discs. This is a guide to replace the optical drive of a Sony Vaio VPCEG37FM.

  1. euvEGRG13FWHNO6P

    • Unlock the battery by sliding the lock upwards.

  2. jNXjyeCoD1f4TGJY
    jNXjyeCoD1f4TGJY
    fomrAfSfRhaFgbDn

    • Slide the release upwards and lift out the battery to remove.

    • Once battery is removed, long press the Power button for 30-60s and discharge any remaining power inside of the computer.

    • Put on the ESD bracelet, making sure the metal circle is touching your skin. Remove the alligator clip from the other end of the bracelet and insert the jack into the ground plug of an active electrical outlet. (the round hole). Do not move forward until you are grounded.

    After you have removed the battery, long press the Power button on the laptop for 30-60s and discharge any remaining power within the computer.

    Before you proceed to the next step you should be wearing an ESD bracelet. Remove the alligator clip from the bracelet and insert it into the ground plug in an active electrical outlet (the round hole). electro static can short your computer and its components. Its extremely important that you are grounded before you move to the next step.

    Heavy Pour -

  3. PWOWNCLFwfaoJlql
    PWOWNCLFwfaoJlql
    XlgIkUT6IW5BeFGG

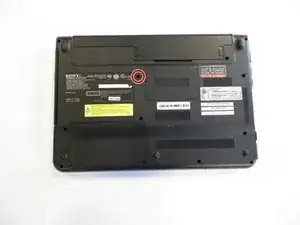

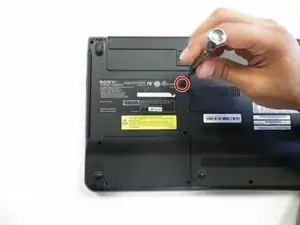

    • Using the Phillips #1 screwdriver, unscrew the 6.5 mm screw.

  4. PaiVApqKqmslZ1s4

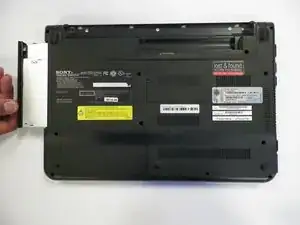

    • Grab and slide out the optical drive to remove.

Conclusion

To reassemble your device, follow these instructions in reverse order.
