Introduction

This guide will demonstrate how to replace your devices Fans. This guide is quick and simple. It will only take you 15-20 min and only uses a few tools. You might need to replace your devices fans if you can't hear them and your device is getting hot.

If the fans are spinning under load, use an ESD-safe brush to clean out the blades and remove any built-up debris.

  1. disBkJLYKsWyOnFC
    • Remove the rubber cosmetic strip along the outside edge of the back plate with tweezers.

  2. DymSIV2GPBF4IXwp
    DymSIV2GPBF4IXwp
    lkFYS5RPvf51M4NF
    • Remove the two rubber feet on the lower case with an opening tool.

  3. BQeCc2EHYUb4frIq
    • Remove the two screws with a T3 Torx screwdriver.

  4. c3A3HPFhTiu26TnT
    • Remove the seven screws securing the lower case with a T3 Torx screwdriver.

  5. kRIiVor6o5EqdNoD
    kRIiVor6o5EqdNoD
    diJVsnGVIsMcPrlE

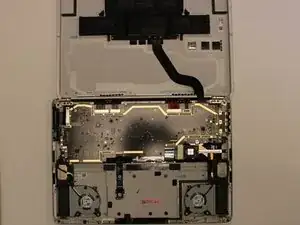

    • Lift the lower case gently and set it above the device.

    • Take care not to strain the battery cable as you move the lower case.

  6. Gvn6r4ECNvqRSHDf
    Gvn6r4ECNvqRSHDf
    5bYNswAE1yRwwxwR
    • Disconnect the battery cable by lifting the pull tab until it "clicks."

  7. skA6LeG1q515DCTq
    skA6LeG1q515DCTq
    cNXlTUwumPAThwXu

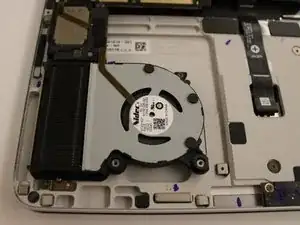

    • Remove the screws securing both of the fans with a T3 Torx screwdriver.

  8. vDiCotZcB21UxJkR
    • Flip up the ZIF locking flap on each socket.

    • Disconnect the ribbon cables attached to each fan.

  9. lS2aBVEfrQd12HXw
    lS2aBVEfrQd12HXw
    XFJLgLVWfYN2TsXS
    • Lift the fans up and out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
