Introduction
If your TI-Nspire CX calculator isn't powering on after being charged, or appears to need charged more often or for longer than usual, you may need to replace the battery. Use this guide to replace the calculator's internal rechargeable battery.
The rechargeable battery may become damaged or faulty with repeated use and charging cycles. A faulty battery will store less energy or no energy at all.
Step 3 requires you to disconnect and remove the old battery. Before removing the old battery, inspect it for damage such as leaking or appearing puffy. Damaged batteries are a fire hazard. If the battery appears damaged, you must take appropriate precautions.
Before using this guide, be sure to power off the calculator completely.
Parts
-
-

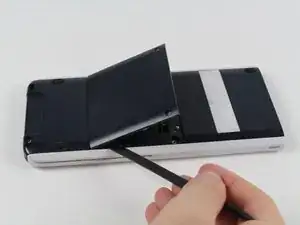

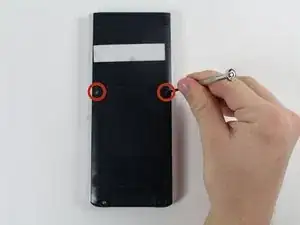

Use a Phillips #0 screwdriver to loosen the captive screws on the back plate of the calculator.
-
-
-

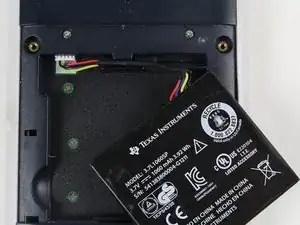

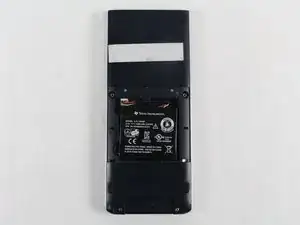

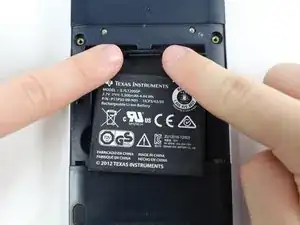

Carefully disconnect and remove the old battery.
-

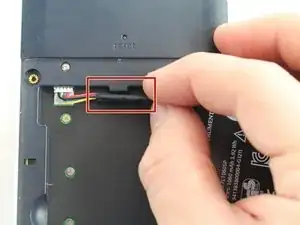

Unhook the wire from the tab.
-

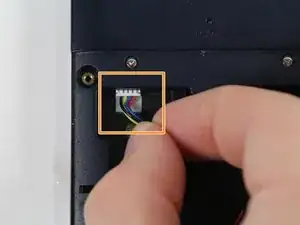

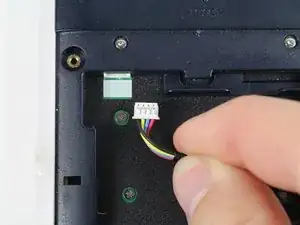

Carefully pull out the connector.
-
Now charge your calculator and power it up. If replacing the battery does not solve your problem, it may be a problem with your charging cord or the internal sockets.
