TaoTronics TT-SK06 Control Buttons Replacement

Written By: Niko Fabian
  • Comments: 3
TaoTronics TT-SK06 Control Buttons Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

If the control buttons on your device are faulty or have stopped working completely, this guide will aid you in replacing these buttons on the inside of the device.

  1. ZsEYImGM24mnBi22
    ZsEYImGM24mnBi22
    VjPJpMS2TFnAoEu3

    • To remove the front grate of the speaker grab a metal spudger and go to the back corner of the device where the front panel curves around the device. Insert the spudger and ply apart the corner until clips release from panel. Repeat for the other side of the grate. When all clips are released pull grate off from the front of device

    • When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The metal spudger is great when you need serious prying power, but the regular black nylon spudger or a plastic opening tool should be used whenever possible.

  2. 5MHC4kc5kspbpNLH
    5MHC4kc5kspbpNLH
    ydVbijLgKKmkPtEi
    sgANKnZmPUsvt5Wi

    • Grab two metal spudgers and insert one into the slit underneath the silver plating on the top of the device. Pry upward with the spudger until you unhook the two locks on the top. Repeat same step for the bottom of the device. When all four tabs are released, slide device out of the casing

    • Use caution when working with the metal spudger, as it can potentially damage your device.

  3. FUpnMaEBaxX5lc6h
    FUpnMaEBaxX5lc6h
    NcFePdityJxRg3rU

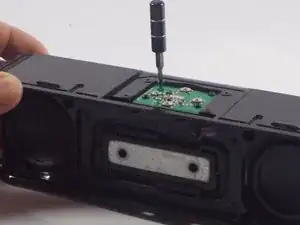

    • Locate the four, 6mm screws on the board on top of the device. Unscrew them with the PH0 bit on the screwdriver so that the board may be removed.

  4. kjlro1xVi3fGphNh
    kjlro1xVi3fGphNh
    jt6KR3Ee1MEwLgkK
    hRflELDRKOqniTwO

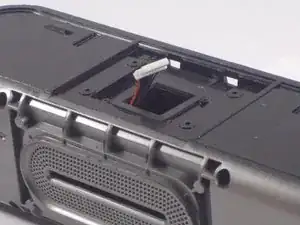

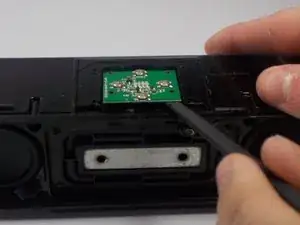

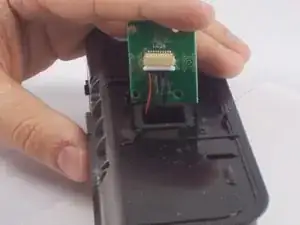

    • Using the nylon spudger, carefully remove the board from its socket. Next detach the wires from the chip to remove the board. After board is removed replace buttons.

Conclusion

To reassemble your device, follow these instructions in reverse order.
