Introduction
The water level of the machine is detected by a sensor inside, as well as a float with magnets in the water tank.[
In the case of this error, despite the water tank being inserted and filled, the machine thinks that there is too little water in the tank and indicates this by the red flashing of the water tank indicator light (far left). (see also video)
Due to aging of the magnet, as well as vibration or temperature, the magnet in the water tank can lose power.
Replacing this magnet or the float is not possible without destroying the water tank or replacing it completely.
However, the solution to this is the position optimization of the sensor inside the device.
Parts
-
-
Remove the water tank and the attachments (drip pans, etc.)
-
Remove all the water from the machine
-

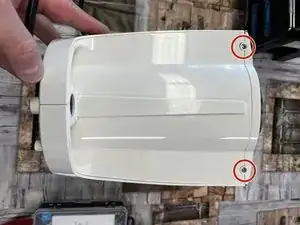

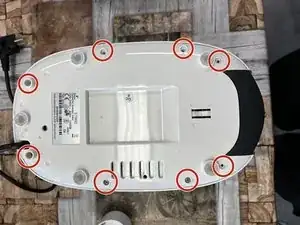

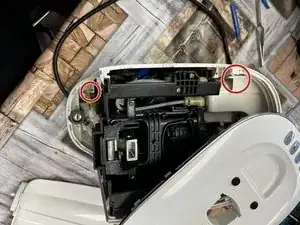

Remove the screws on the back (behind the water tank) with the tensioner 2.0 bit or a screwdriver
-

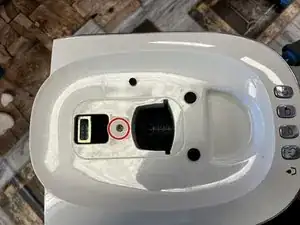

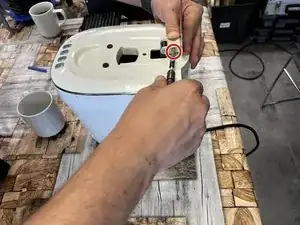

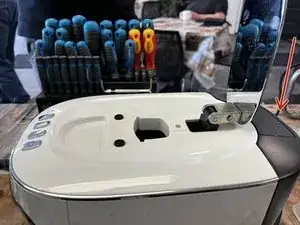

Remove the screw in the lid with a Phillips screwdriver
-
-
-

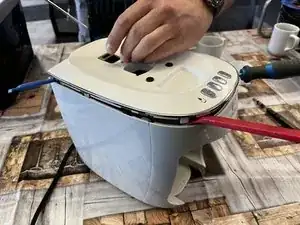

Run a spudger around the lid to loosen the clips.
-

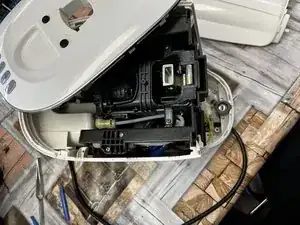

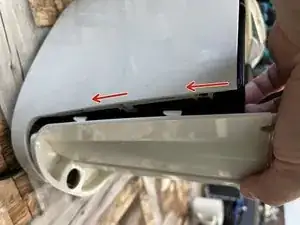

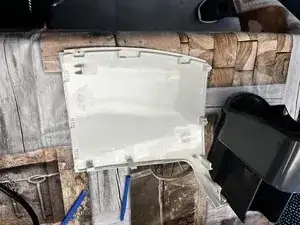

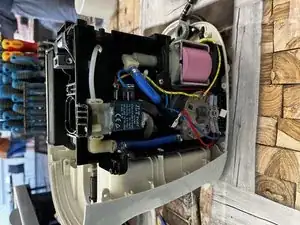

Carefully lift off the lid (cable control unit!)
-
-
-

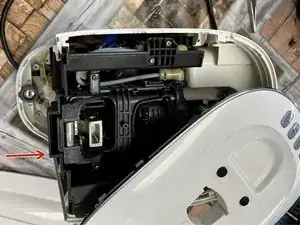

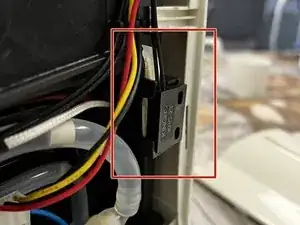

Remove the sensor from the holder
-
Roll up several centimeters of masking tape to the width of the sensor
-

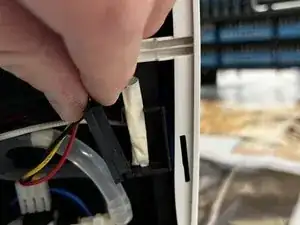

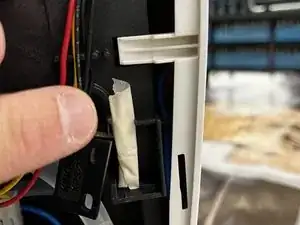

Apply masking tape behind the sensor in the bracket
-
Install the sensor (sensor will sit 1-2 mm closer to plastic trim)
-
-
-
Fill the water tank
-
Install the water tank
-
Check for function
-
Empty the water tank halfway
-
Check for function
-
Empty water tank completely
-
Check for function
-
Work through the steps in reverse order to reassemble your device.
