Teddy Ruxpin Arm Button Replacement

Written By: Lauren
  • Comments: 5
Teddy Ruxpin Arm Button Replacement

Difficulty

Easy

Steps

9

Time Required

20 minutes

Introduction

Is your Teddy Ruxpin story-time mood or singing not working? Your Teddy Ruxpin’s arm buttons might need to be replaced! This guide will take you through the proper steps on how to remove the buttons with ease. For this guide, all you will need is a pair of scissors and a Phillips #1 and #2 screwdriver. There are not many difficult steps but pull the wires with caution as you do not want to break them.

  1. nUfqWgdYJtTKYxX2
    nUfqWgdYJtTKYxX2
    MTMSkcBDOVfbFRo5

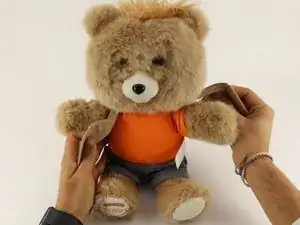

    • Remove the vest covering the back of the bear.

    • Orient the bear with his back facing upwards and unscrew the single Phillips #2 screw.

    • Captured screws will stay in place, no need to worry about losing this one!

    If screw is missing could this be the problem

    nursejackie55 -

  2. rcVNXibq5Wd4hyBF

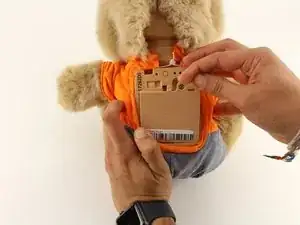

    • Pull the tab outward to remove the protective plate for the batteries.

  3. V4C2rIHN1X5vcVeV

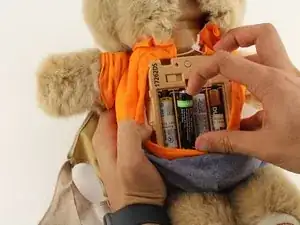

    • Remove all four AA batteries by pushing the positive end down and pulling the battery out toward yourself.

    I have already changed out the batteries and it still want com on.

    Wendy Nickel

    breezy_bear99 -

  4. PfvEn1FycGsIjPi3
    PfvEn1FycGsIjPi3
    AxRppx1A3ogsHHdx
    TGQLCcuxCwYpsK6G

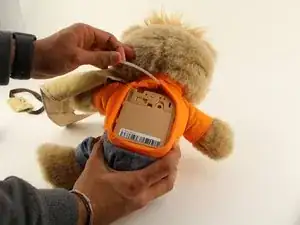

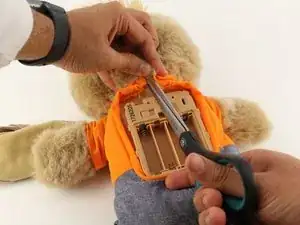

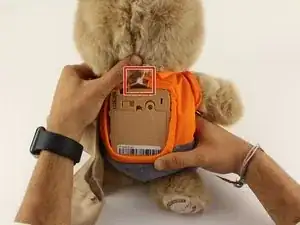

    • Cut the orange shirt and zip tie.

    • Remove the zip tie.

  5. fRltQEldCiKbE4SW

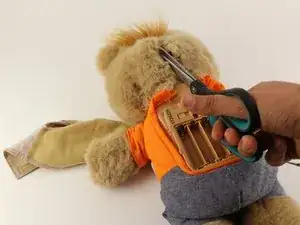

    • Cut across the back seam of the head of the bear along the arrow.

    • This damages the bear's exterior and will require resewing.

  6. sttQCmwI5NEMlVNH
    sttQCmwI5NEMlVNH
    2DOaIMHR2RN1bSJp
    nIWti1jICOHWt3m4

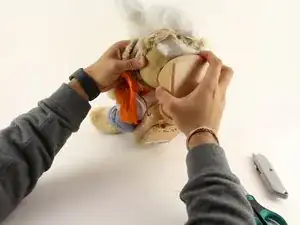

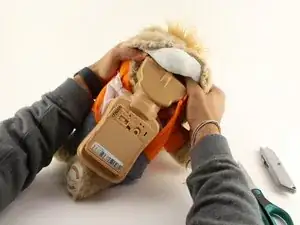

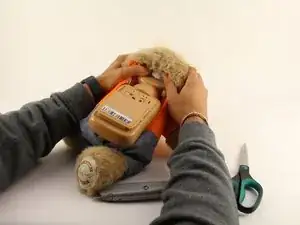

    • Remove the interior of the doll.

    • Peel the outer layer around the head of the bear and forcefully pry off the face of the bear from the outside layer of the bear.

    • This will be difficult and require significant force, but do not fear about breaking the doll at this stage.

  7. 5J1YnN1BcoXKp6IE
    5J1YnN1BcoXKp6IE
    6bntgI1X2mt3j5Tk

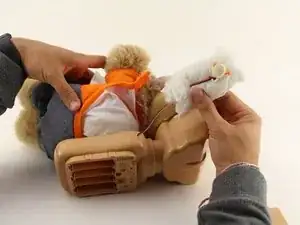

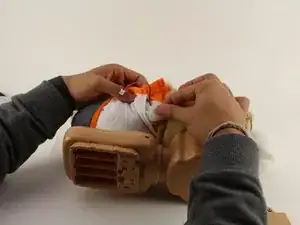

    • Extract each arm button.

    • Pull on the stuffing of the bear and not the wire to remove the arm button.

  8. MFc6lIh56jrjlddT
    MFc6lIh56jrjlddT
    ixHPOAqaLFaJnTv4

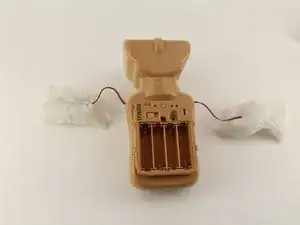

    • Pull off the rest of the outside layer of the bear.

  9. LV56yunOSYVWKnBA

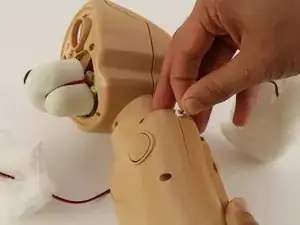

    • Unplug the arms from the main body.

Conclusion

To reassemble your device, follow these instructions in reverse order.
