Introduction

Use this guide to replace the watch band links on your Tommy Hilfiger Quartz Watch wristband.

Watch band links are rivet lug components that hold together the wristband and allow the watch to fold. There are often cases where these links need to be removed or added, and performing a dedicated replacement with a few special tools can help you accomplish this.

Before using this guide, it would be preferable to have a general idea of whether you will be adding or removing the watch band links on your watch. The watch should be tight enough that it stays in place, with enough room for your wrist to breathe.

Step 2 focuses specifically on the removal of links. Step 6 is directed towards adding new watch band links.


  1. jkUYMqr2QhjKqmIp

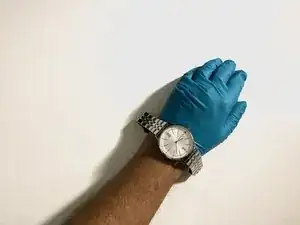

    • Place the watch on your wrist and approximate the number of links to be removed.

  2. h33DITOlkDTRSaIY

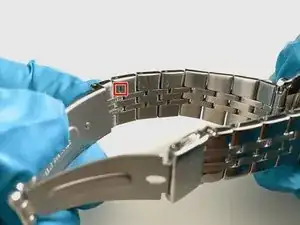

    • Identify the arrows located directly on the links and point them downwards in the south position.

  3. aknF3YsiSchtwsRQ
    aknF3YsiSchtwsRQ
    oyyVtQTykKit1XWn
    6ZfpVJS2uCSBcMiQ

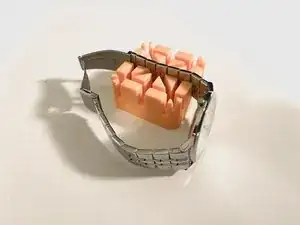

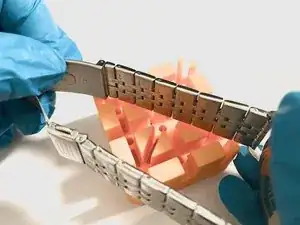

    • Lay and secure the wristband on the watchband holder.

  4. NtcXSbjHHVVqMwJq
    NtcXSbjHHVVqMwJq
    XSeIaCYrlU6fS2SU
    tAj3g1MRaVxZobYM

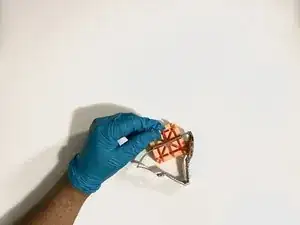

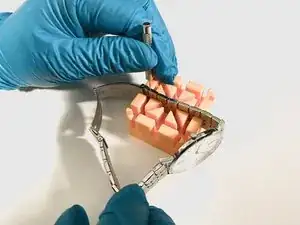

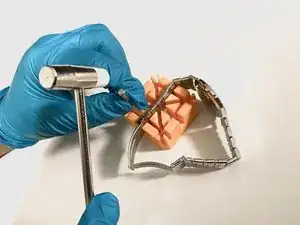

    • Align the tip of the pin pusher on the pin.

    • Begin tapping the hammer with force to push the link pin out.

  5. rKIaa5g53yPSFDfF
    rKIaa5g53yPSFDfF
    TjDhPnwfnumb2sGF

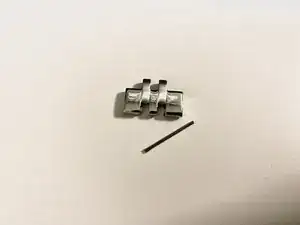

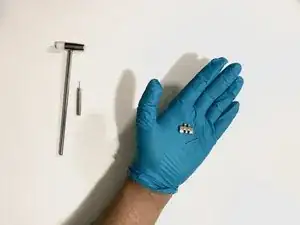

    • Set aside the link pins and links that have been removed from the watch.

  6. wSqvJlldTFFWdsl2
    wSqvJlldTFFWdsl2
    JvI3OIWWwd4PMsRp
    ItyO43nBTmIHt5wR

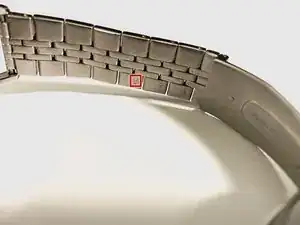

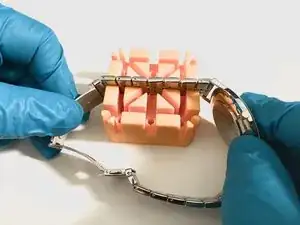

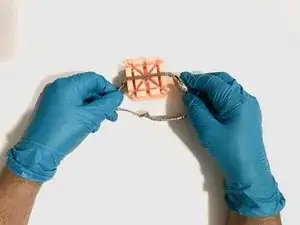

    • In order to add links to the wristband, ensure that the arrows are pointing upwards in the north position.

    • Secure the wristband on the watchband holder.

  7. UhnJvib1XEAPNQKY
    UhnJvib1XEAPNQKY
    A2F54XZEri16SA51

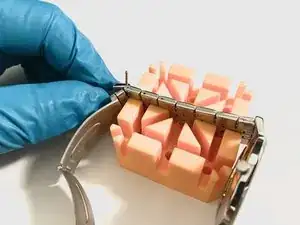

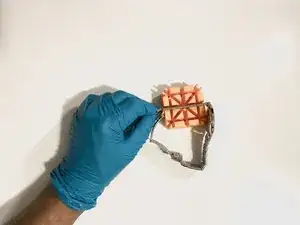

    • Align the link pins to be added on the holes that connect the desired link to the wristband.

  8. dq3hgCup6YygsRr4
    dq3hgCup6YygsRr4
    N3am2yVi4JEjPuJk
    JOSMSrJPLuKcQ4SB

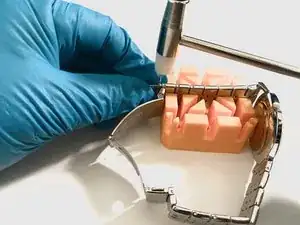

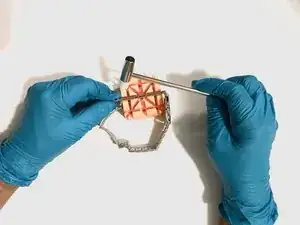

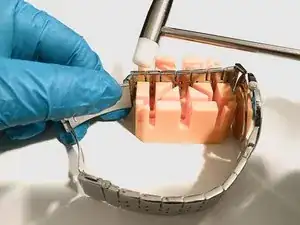

    • Use the hammer to gently tap the link pins into the holes until the pin is completely resting in position.

  9. IwXtXYTVAcvjGEaI

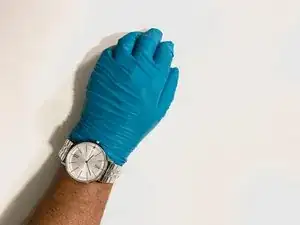

    • Finally, place the watch on your wrist to determine if the links are secure and the fitment is comfortable.

    • If adjustments need to be made, refer to step 2 for the subtraction of links and step 6 for the addition of links.
