Toshiba Qosmio X775-3DV80 Wifi Chip Replacement

Turn your laptop over so the underside is facing up.

Identify the two sliding locks on either side of the battery.

Simultaneously slide both locks outward to release the battery.

Pull the battery straight out of its slot to remove it.

Locate the optical drive retaining screw on the underside of the laptop.

Using a Phillips #00 screwdriver, remove the optical drive retaining screw.

Using your finger or a spudger, push the optical drive out of its compartment so you can grab it.

Pull the optical drive out of its slot in the side of the laptop.

Loosen the single screw on the service panel by twisting counterclockwise with a Phillips #00 screwdriver.

Using a spudger or plastic opening tool, pry off the service panel.

Using your fingers, pull the retaining clips away from the RAM sticks.

Pull the RAM sticks out of the slots.

Using a Phillips #00 screwdriver, remove all the remaining fourteen screws from the bottom case of the laptop.

Using a Phillips #00 screwdriver, remove the five screws under the service panel.

Remove the retaining clip.

Using a spudger, pry the keyboard from the top panel of the laptop.

Disconnect the two ribbon cables connecting the keyboard to the laptop.

Unplug the connector on the bottom of the laptop.

Separate the two halves of the base of the laptop.

Disconnect the two cables.

Remove the palmrest assembly.

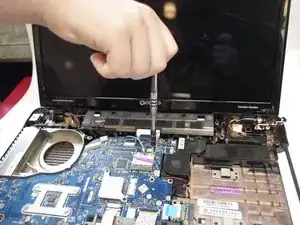

Using a Phillips #00 screwdriver, remove the four screws securing the fan assembly to the laptop.

Unplug the fan-motherboard connector.

Remove the fan unit.

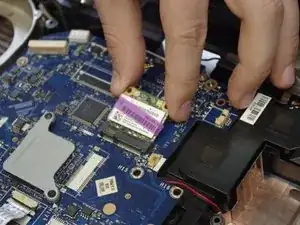

Detach the two coaxial connections from the wifi chip.

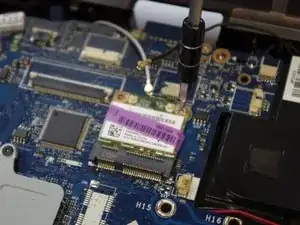

Using a Phillips #00 screwdriver, remove the two screws from the wifi chip.

Remove the wifi chip by pulling it out of the PCIe slot.
