Introduction

In the situation where the motor in a Traxxas Ford Fiesta ST Rally fails due to natural wear, lack of maintenance, or is somehow defective, the user may need to remove the motor and replace it with a functioning motor. The process will not take long and will only require the use of standard hex keys. This guide will provide a walkthrough of the process of removing the broken motor and installing a new one that can be ordered online or bought at a hobby store. Before using this guide, please disconnect the battery in the chassis and ensure that any dust or dirt will not pose a hazard to components before completing the fix. Any hazardous dirt can often be removed with canned air, a duster, or lightly shaking the dirt off holding the chassis upside down.

  1. gMpXrdssjKGIK43Y
    gMpXrdssjKGIK43Y
    N2fTmYXJJDWLcnhX
    ZYDswugaERFKvdVf

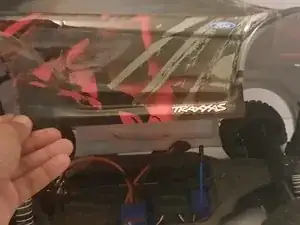

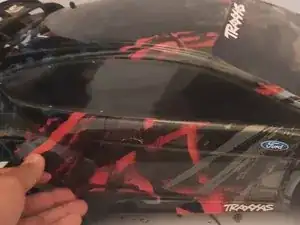

    • Remove each of the four pins that hold the scale model shell by pulling them from their posts.

    • Remove the shell by lifting it off the chassis using your hands.

  2. askVrYYjBvsJoD1E
    askVrYYjBvsJoD1E
    O1BcCTbpWfiDWQOs

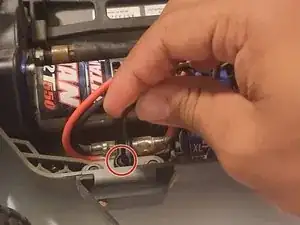

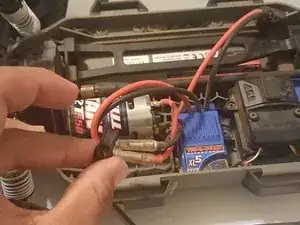

    • Remove the 3x6 mm screw holding the wire retainer in place using a 2.5 mm hex key.

    • Remove the wire retainer by lifting it off the chassis.

  3. H35oeSS1EgENeMAc
    H35oeSS1EgENeMAc
    bqEXdcluDkt4515N
    • This guide was done without a battery present. Please remember to properly disconnect any batteries before this step as it could cause injury to you or damage to the device.

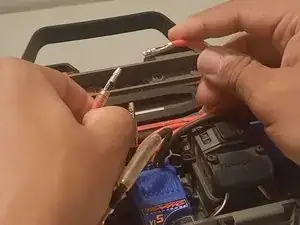

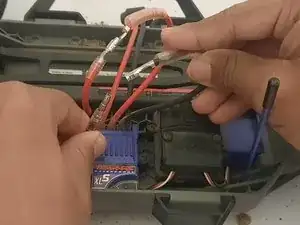

    • Disconnect both power cables attaching the electronic speed control to the motor.

  4. uiSPpBCoBSWmGIiJ
    uiSPpBCoBSWmGIiJ
    RvjNtfkDjFlkfBff

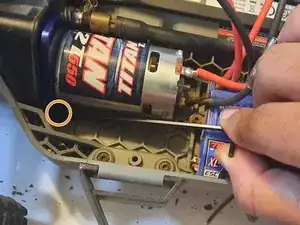

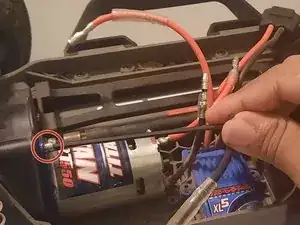

    • Remove the 3x15 mm retaining bolt using the 3 mm hex key.

    • Remove the 3x6 mm flat head screw holding the motor plate in place with the 3 mm hex key.

  5. VCdKNSKqQyQcyfPd
    VCdKNSKqQyQcyfPd
    XOLYyMsgNctvS1l3

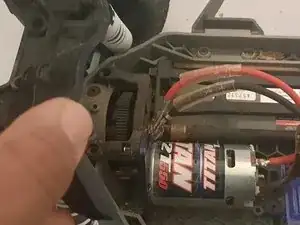

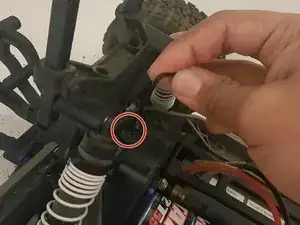

    • Use the 2.5 mm hex key to remove the 3x6 mm screw for the gear cover.

    • To remove the cover, simply lift it up and off of the chassis.

    • During reassembly, ensure that the motor and gearing line up just how it is in the second photo for this step.

  6. GygeARO5KHAqrA23
    GygeARO5KHAqrA23
    EOvUBj5tGpnitVef
    MZif6RJ3pZ2GYfTN

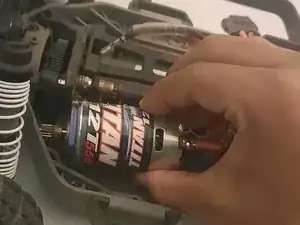

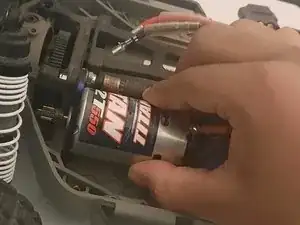

    • Remove the motor by rotating and lifting it free from the chassis.

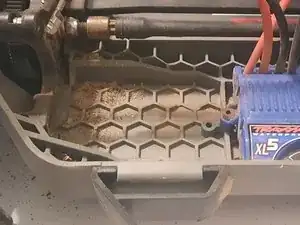

    • You may need to clean the area where the new motor will be to prevent the possibility of debris becoming a problem for a newly replaced engine.

  7. PMxcUyURuOTZfjVr
    PMxcUyURuOTZfjVr
    6jONhUB2QemXxJl1
    UPdcBWTHUUn2njTG

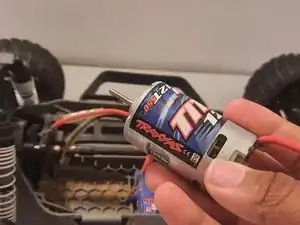

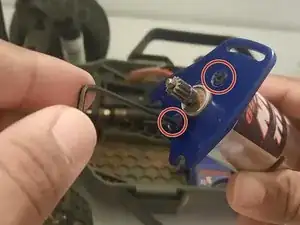

    • Use the 2.5 mm hex key to loosen the 3x8 mm screws to remove the motor plate.

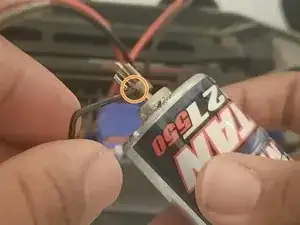

    • Use the 2 mm hex key to loosen the 3 mm grub screw enough to remove the pinion gear from the motor.

    • Slide the pinion gear right off the motor's external rod when loose enough.

    • Make sure to have the pinion gear in the exact same area as it was on the replaced motor in order to align with the device's gearing.

    • This process can also be used to put an even better motor in as a replacement during reassembly.

Conclusion

Follow these instructions in reverse order to reassemble your device using the new/functioning motor.
