VTech Kidizoom Smartwatch DX2 Speakers Replacement

Written By: Jessica Richard
  • Comments: 3
VTech Kidizoom Smartwatch DX2 Speakers Replacement

Difficulty

Difficult

Steps

8

Time Required

10 - 15 minutes

Introduction

If the speakers on your watch are not working, cracked, or damaged in anyway it will need to be replaced. The following guide will show you how.

  1. EKVLg1IxwZlA6eOc
    EKVLg1IxwZlA6eOc
    IiEZa45iM5ufg5OJ

    • Begin by flipping the watch over with its back facing upwards.

  2. 3yiLtcFNUTvoOOth
    3yiLtcFNUTvoOOth
    2IgCRMAdgWPBkPKM

    • Next, use the Phillips #00 screwdriver to unscrew the four 6.0 mm screws located in each corner of the watch to remove the backplate.

  3. JHvLq1CKc6MjIJQ3
    JHvLq1CKc6MjIJQ3
    jdD3vgVU4MAZ6RcK

    • Gently lift the backplate up to remove it.

  4. 4NxGTlsNTmlFS3Ed
    4NxGTlsNTmlFS3Ed
    IQqVPFhTtAPtp5DX
    Jd6a3ehGhcdoLRE1

    • After removing the backplate, lift the master switch up from the circuit board.

  5. W6ctQJhA1IlPcIBY

    • Using a Phillips #00 screwdriver, remove the 0.6 mm screw.

  6. BieEUtJaqFpuPUQ1
    BieEUtJaqFpuPUQ1
    6oGFBLqRLnNDVMqH

    • Carefully remove the speaker from the case without disconnecting it from the motherboard.

  7. Br1lPyALvmaUrJ5W
    Br1lPyALvmaUrJ5W
    QM1PEwyfxbrNYCLy

    • Using the tweezers, carefully lift the bar holding the connection to the screen.

    • Remove the motherboard from the device.

    and how to put it back

    noah -

    I'm trying to replace the microphone. Will replacing the motherboard get me a new microphone? I don't see it listed as a replacement part.

    Bill Pasnau -

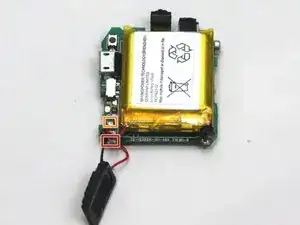

  8. WytNNbfMUMxZqiIu

    • Carefully desolder the speaker from the board.

    • Be careful to not desolder the battery cable.

Conclusion

To reassemble your device, follow these instructions in reverse order.
