Visual Land Prestige 7L Screen Replacement

Written By: Zach
  • Comments: 1
Visual Land Prestige 7L Screen Replacement

Difficulty

Moderate

Steps

7

Time Required

30 minutes

Introduction

If your device's front screen is broken or cracked, this guide will show you how to replace it.

  1. FFjnmhnHcLiSBsyO
    FFjnmhnHcLiSBsyO
    4ThhLqK2W4u1NwWD

    • Remove the two 8mm Phillips Head screws located at the bottom of your device.

  2. JC6bFVXUpTD2FcyD
    JC6bFVXUpTD2FcyD
    KjQQMSpJdIfU6mXe
    JRFUHDMxvBAQcBLo

    • Insert the spudger between the two pieces of the case around the media ports and pry them apart.

    • We found the best way to get the spudger inside the case was to insert in into the SD card slot. Be sure to only insert the spudger a shallow amount and be careful not to damage any of the inside of the device.

    • Finish unsnapping each plastic piece holding the device together along the bottom.

  3. YBnRGCBLbarhLZV2
    YBnRGCBLbarhLZV2
    6yHCNlOZPDylbD6r
    nYCeIWPycRgT3MQH

    • Move the spudger down the rest of the case, separating each side, and finally the top.

    • Pull the back off and place it to the side.

    • Without a back panel for protection, be sure place your device on the table screen-side down to avoid damaging the internal circuitry.

  4. rpXmoQjXfkTCCnxn
    rpXmoQjXfkTCCnxn
    3yUH3qBodSgLETJV
    d5XigoJQvaJgWuGR

    • Remove the tape holding the motherboard, wires, and connecters in place.

  5. LPfRknZghUkBKPOO
    LPfRknZghUkBKPOO
    FSxtuFMRLR3JXP5a
    44CqIllNPUI33K5A

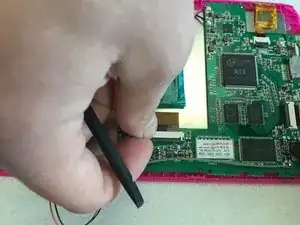

    • Unclip the three connectors by gently pulling the rear panel up and away from the motherboard.

    • For more information on unclipping connectors see this How To Guide

    • Pull out each of the gold connections.

    • The gold connections will disconnect from the motherboard, but not entirely from the device. Let them sit loosely where they are attached and be careful not to tear them when working in their proximity on the device.

  6. MfOUZSuFUoZvt3OT

    • Remove the seven 4mm Phillips Head screws that hold the touchscreen panel and motherboard together.

  7. NTCFk5NXFNJoGmkN
    NTCFk5NXFNJoGmkN
    JdC6j2hHjTtGIQN2
    kNBs32FwEFlSPgNo

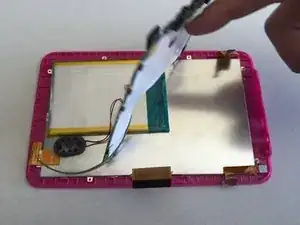

    • Gently flip over the motherboard and begin to use the spudger to pry away the touchscreen panel from the front screen.

Conclusion

To reassemble your device, follow these instructions in reverse order.
