Vizio CT15 Display Replacement

Written By: Brian Patino
  • Comments: 0
Vizio CT15 Display Replacement

Difficulty

Moderate

Steps

5

Time Required

5 - 15 minutes

Introduction

This guide will help users remove a broken Vizio CT15 display screen.

  1. KTxFEEe5UqgEVaFm
    KTxFEEe5UqgEVaFm
    ZiNd6BdvRaGXRmfj

    • Turn the laptop off and remove all power cables.

    • Remove the six Phillips #0 screws.

    • Pull the back cover off.

  2. 2i1UU6ygBBarU6uT

    • Remove the six Phillips #0 screws.

  3. 14W63iVQKfFMnqDt
    14W63iVQKfFMnqDt
    s2TWJqPbVCnDFHvR

    • Use the plastic opening tool or your fingers to pry the battery up and pull it from the laptop.

  4. dDNLQGFuoIprIFtS
    dDNLQGFuoIprIFtS

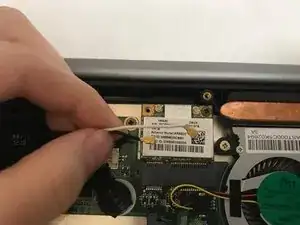

    4aLXY2mT6HVYKIpO

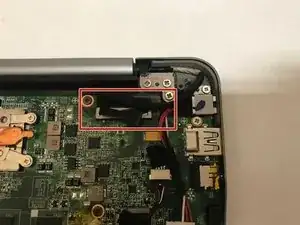

    66WIZAloN5lqp6Bf

    • Using your fingers, unplug the wires.

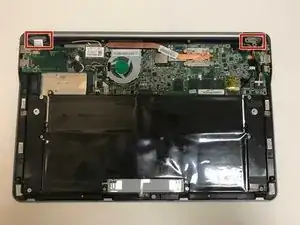

  5. CmjmHFNXiXlJ44HZ
    CmjmHFNXiXlJ44HZ

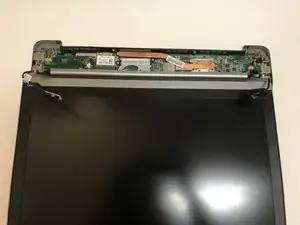

    HFQrY1NdwXEE4UPp

    • Remove the six Phillips #0 screws.

    • Disconnect the display from the laptop base by pulling the two apart from each other.

Conclusion

To reassemble your device, follow these instructions in reverse order.
