Introduction

  1. LRbHURALYuByRbS1
    • Hold the on/off button for 3 seconds until the screen is black.

    • Remove batteries by placing thumb on battery plate cover sliding it down to expose batteries.

    • Turn camera upside down to allow the batteries to fall out.

  2. eB1oeXM1vJuycaPJ
    eB1oeXM1vJuycaPJ
    DIrvNMvsMBuElHYR
    NARO6YRRLQjlVKYX
    • There are 5 (4.5mm in length) screws on the sides of the camera that need to be removed. Use a Phillips #000 screwdriver to remove all screws.

    • Remove 2 screws on the right side of the camera, and store them on a magnetic mat.

    • Remove 2 screws on the bottom of the camera, and store them on a magnetic mat.

    • Remove 1 screw on the left side of the camera, and store it on a magnetic mat.

  3. NrnXJlvlEHrR4hWY
    NrnXJlvlEHrR4hWY
    kRufnnyx2CX2SCOJ
    • Using a prying tool or fingernail, gently separate the back plate from the front plate, exposing the inside of the camera.

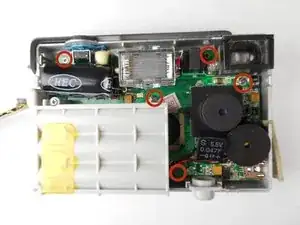

  4. IYwkMkoPbWAUuX3e
    • Using a Phillips #00 screwdriver, remove the 5 (3.5mm in length) screws shown to the left.

    • Remember to place small screws on magnetic mat or in a container.

  5. LoeAnFjmbIpQAlaF
    LoeAnFjmbIpQAlaF
    YoAhdCBBqsVQRHHR
    Tt2BBFBHCryI6wLN

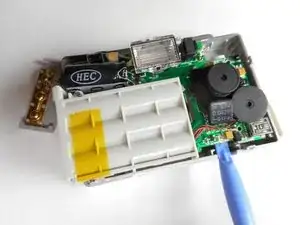

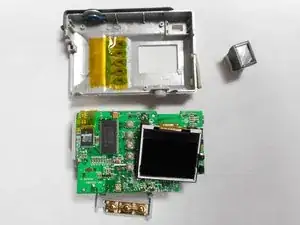

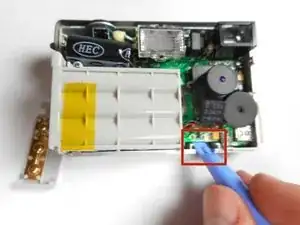

    • Using a pry tool or fingernail, gently pry the circuit board from the base.

    • Gently lift the lower right hand corner of the circuit board, separating it from the base.

  6. P3TDqpTCOxSbjaaI
    P3TDqpTCOxSbjaaI
    wwsRkmLo5bMPVQre
    tUU6CUIBigrvFFC5

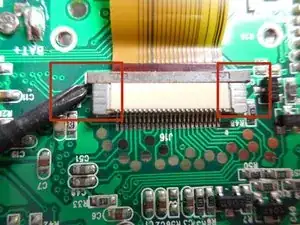

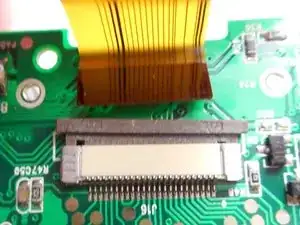

    • Locate LCD and gently bend it back to reveal ribbon cable connector.

    • Using small screw driver or tweezers gently slide the edges of the ribbon lock towards the direction of the cable.

    • Once the lock is opened, use tweezers to slide the ribbon cable from the connector.

    • Replace LCD as needed and repeat steps in reverse to reassemble.

Conclusion

To reassemble your device, follow these instructions in reverse order.
